635235 | Manufacturer: Philips | EAN: 8711500635235 | MPN: 927904886502
CFL master PL 13W 865 2P compact fluorescent lamp G24
Product is out of production!
The Master PL-C 13W 865 2P is an efficient medium-wattage compact fluorescent lamp, perfect for general downlights in retail, hospitality, and office settings. With Philips' original bridge technology, it delivers more light and higher efficacy than bended technology. This energy-saving lamp is designed for electromagnetic gear operation and features a plug-in/pull-out base. Illuminate your space with this reliable and long-lasting lighting solution.
More info
Philips CFL master PL 13W 865 2P compact fluorescent lamp G24 C. Illuminate your space with the Master PL-C 13W 865 2P compact energy-saving lamp. Efficient and bright, this G24 lamp is perfect for any room.
Cap-Base G24d-1
Life to 10% failures EM 6500 h
Life to 50% failures EM 10000 h
LSF HF Preheat 2000 h Rated,3h 99%
Color Code 865 [CCT of 6500 K]
Color Rendering Index 80 Ra8
Color Designation Cool Daylight
Color Temperature 6500 K
Luminous Flux EM 25 °C, Nominal 840 lm
Luminous Flux EL 25 °C, Nominal 840 lm
Luminous Efficacy Rated EM 25 °C 63 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 313 -
Chromaticity Coordinate Y 337 -
Lamp Wattage 13 W
Lamp Wattage EM 25 °C, Nominal 13 W
Lamp Voltage EM 25 °C 95 V
Lamp Current EM 25 °C 0.170 A
Dimmable No
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 17 kWh

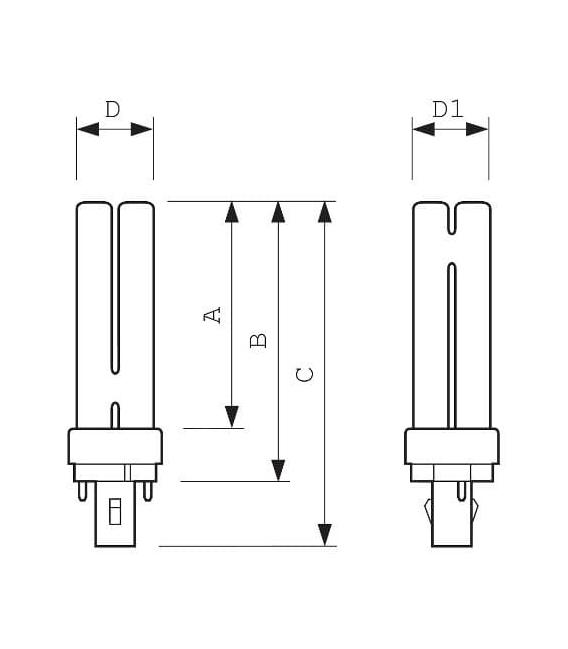

Base Face to Base Face A 97.7 (max) mm
Insertion Length B 116 (max) mm
Overall Length C 138.4 (max) mm
Diameter D 27.1 (max) mm
Diameter D1 27.1 (max) mm
MASTER PL-C is an efficient medium-wattage compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applicatiMASTER PL-C is an efficient medium-wattage compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 2-pin version is designed for operation on electromagnetic gear and is provided with a plug-in/pull-out lamp base.
Features
• 2-pin base with a housing incorporating the special instant starter and capacitor
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
Applications
• Designed for general or supplementary lighting in professional or home environments
• Recessed or surface-mounted downlighters, wall units, table lamps and pendant lamps
| Explanation It needs ballast | yes |
| Explanation Dimmable | no |
| Explanation Energy efficiency class | B |
| Explanation Lamp holder, lamp socket | G24d-1 |
| Explanation Wattage - (W) | 13 |
| Explanation Luminous flux - (lm) | 840 |
| Explanation Luminous efficacy - (lm / W) | 65 |
| Explanation Color temperature - (K) | 6500 |
| Explanation Light color code | 865 |
| Explanation Color rendering - (CRI) | 80 |
| Explanation Energy consumption - (kWh / 1000h) | 17 |
| Explanation Lifetime - (h) | 10000 |
| Explanation Factory packed - (pieces) | 10 |
