Fluorescent lamps

Philips Master TL D 18W 840 G13 Super 80

631718 | Manufacturer: Philips | EAN: 8711500631718 | MPN: 927920084023

The MASTER TL-D Super 80 lamp offers more lumens per watt and better color rendering than TL-D standard colors. Furthermore, it has a lower mercury content. The lamp can be operated in existing TL-D luminaires.


1,77 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 25

-+

More info

More info

Cap-Base G13 [Medium Bi-Pin Fluorescent]
Bulb T8 [26 mm]
Life to 10% failures EM 12000h
Life to 10% fail Preheat EL,3h 17000h
Life to 10% fail Nonpreh EL,3h 10000h
Life to 50% failures EM 15000h
Life to 50% fail Preheat EL,3h 20000h
Life to 50% fail Nonpreh EL,3h 12000h

Color Code 840 [CCT of 4000K]
Color Rendering Index 85 Ra8
Color Designation (text) Cool White
Color Temperature 4000K
Luminous Flux EM 25 °C, Rated 1350 lm
Luminous Flux EM 25 °C, Nominal 1350 lm
Lum Efficacy Rated EM 25 °C 75 lm/W
LLMF EM 2000h Rated 96%
LLMF EM 4000h Rated 95%
LLMF EM 6000h Rated 94%
Design Temperature 25 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 380 -

Lamp Wattage 18W
Lamp Wattage EM 25 °C, Nominal 18W
Lamp Wattage EM 25 °C, Rated 18W
Lamp Voltage EM 25 °C 59V
Lamp Current EM 25 °C 0.360A
Dimmable Yes

Energy Efficiency Label (EEL)A
Mercury (Hg) Content 2 mg
Energy consumption kWh/1000h 22 kWh

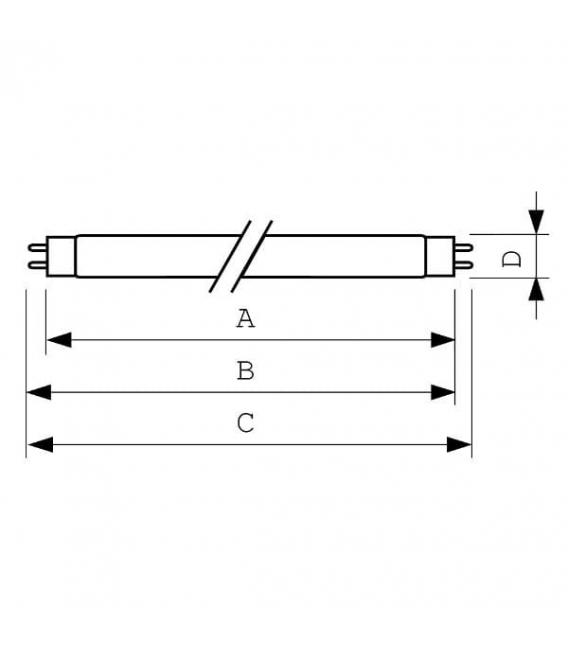

Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 28 (max) mm

-Good color rendering
-Relatively high efficacy, both initially and during lamp lifetime, with high lumen maintenance
-Create atmospheres from warm white to cool daylight

Features
-Highly efficient 3-band fluorescent coating
-High initial light output compared with standard colors
-Low mercury dose
-Can be used with conventional or electronic gear
-Higher efficacy is achieved with electronic gear

Applications
-Suitable for use in a wide range of luminaires for TL-D fluorescent lamps for 'human' applications such as schools, offices, shops, factory halls etc.

It needs ballastYes
DimmableYES, with DIMM ECG
Energy Efficiency ClassA
Base/SockelG13
Wattage - Watt (W)18
Luminous flux - Lumen (lm)1350
Luminous Efficacy Lamp - (lm / W)75
Light color temperature - Kelvin (K)4000
Light color code840
Color rendering index - CRI85
Energy consumption - (kWh / 1000h)18
Lifetime - hours (h)20000
Factory Box - pieces (pcs)25
