631770 | Manufacturer: Philips | EAN: 8711500631770 | MPN: 927920086544
Master TL-D 18W 865 G13 Super 80
More info
Cap-Base G13 [Medium Bi-Pin Fluorescent]
Bulb T8 [26 mm]
Life to 10% failures EM 12000 h
Life to 10% fail Preheat EL,3h 17000 h
Life to 10% fail Brez predgretja EL,3h 10000 h
Life to 50% failures EM 15000 h
Life to 50% fail Preheat EL,3h 20000 h
Life to 50% fail Brez predgretja EL,3h 12000 h
Color Code 865 [CCT of 6500 K]
Color Rendering Index 85 Ra8
Color Designation Cool Daylight
Color Temperature 6500 K
Luminous Flux EM 25 °C, Rated 1300 lm
Luminous Flux EM 25 °C, Nominal 1300 lm
Luminous Efficacy Rated EM 25 °C 72 lm/W
LLMF EM 2000 h Rated 96%
LLMF EM 4000 h Rated 95%
LLMF EM 6000 h Rated 94%
Design Temperature 25 C
Chromaticity Coordinate X 313 -
Chromaticity Coordinate Y 337 -
Lamp Wattage 18 W
Lamp Wattage EM 25 °C, Nominal 18 W
Lamp Wattage EM 25 °C, Rated 18 W
Lamp Voltage EM 25 °C 59 V
Lamp Current EM 25 °C 0.360 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 2 mg
Energy consumption kWh/1000 h 22 kWh

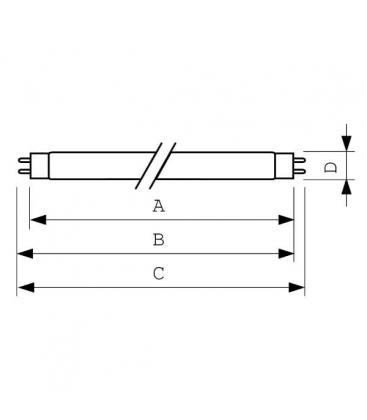

Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 28 (max) mm
Benefits
• Good color rendering
• Relatively high efficacy, both initially and during lamp lifetime, with high lumen maintenance
• Create atmospheres from warm white to cool daylight
Features
• Highly efficient 3-band fluorescent coating
• High initial light output compared with standard colors
• Low mercury dose
• Can be used with conventional or electronic gear
• Higher efficacy is achieved with electronic gear
Applications
• Suitable for use in a wide range of luminaires for TL-D fluorescent lamps for "human" applications such as schools, offices, shops, factory halls etc.
