T9 circular fluorescent lamps
Philips Master TL-E 22W 840 Super 80 G10q
840506 | Manufacturer: Philips | EAN: 8727900840506 | MPN: 928026284070
More info
This circular TL lamp (tube diameter 29 mm) enables omni-directional light distribution. It is suitable for use in a wide range of luminaires for various purposes, including decorative ones, in ‘human’ applications such as schools, offices, shops and homes, and for lighting of residential areas.
Cap-Base G10q
Bulb C-T9 [C-T 29 mm]
Life to 50% failures EM 9000 h
Color Code 840 [CCT of 4000 K]
Color Rendering Index 85 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux EM 25 °C, Rated 1300 lm
Luminous Flux EM 25 °C, Nominal 1300 lm
Luminous Efficacy Rated EM 25 °C 59 lm/W
Luminance Average EM 0.85 cd/cm²
Design Temperature 25 C
Chromaticity Coordinate X 381 -
Chromaticity Coordinate Y 379 -
Lamp Wattage 22 W
Lamp Wattage EM 25 °C, Nominal 22 W
Lamp Wattage EM 25 °C, Rated 22 W
Lamp Voltage EM 25 °C 62 V
Lamp Current EM 25 °C 0.400 A
Dimmable Yes
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 9 mg
Energy consumption kWh/1000 h 24 kWh

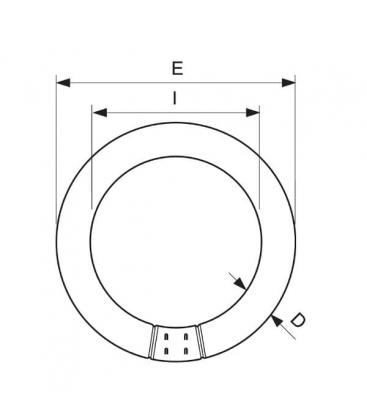

Diameter D 27.1 (min), 30.9 (max) mm
Overall Width E 203.2 (min), 215.9 (max) mm
Inner Width I 147.6 (min), 157.2 (max) mm
Features
• Available in various color designations
Applications
• Suitable for use in a wide range of luminaires for various purposes, including decorative luminaires
• Ideal for ‘human' applications such as schools, offices, shops and homes
| It needs ballast | Yes |
| Dimmable | YES, with DIMM ECG |
| Energy Efficiency Class | B |
| Base/Sockel | G10q |
| Wattage - Watt (W) | 22 |
| Luminous flux - Lumen (lm) | 1300 |
| Luminous Efficacy Lamp - (lm / W) | 59 |
| Light color temperature - Kelvin (K) | 4000 |
| Light color code | 840 |
| Color rendering index - CRI | 85 |
| Energy consumption - (kWh / 1000h) | 22 |
| Lifetime - hours (h) | 9000 |
| Factory Box - pieces (pcs) | 12 |
