638560 | Manufacturer: Osram | EAN: 4050300638560 | MPN: QT-ECO-1-18-24-S
QT ECO 1x18 24 220V electronic ballasts
The QT ECO 1x18 24 220V S is a QUICKTRONIC ECONOMIC ECG designed for FL 7 mm and CFL. With a compact housing and automatic restart after lamp replacement, it is perfect for public buildings. Supply voltage ranges from 220-240 V, line voltage from 198-264 V, and line frequency at either 50 Hz or 60 Hz. It also features an Energy Efficiency Index of A2 and automatic shutdown of defective lamps and at end of life (EoL).
More info
Upgrade your lighting with the QT ECO 1x18 24 220V S electronic ballast. Efficiently power bulbs for a brighter space.
Nominal voltage 220 - 240 V
Mains frequency 50 Hz
DC voltage 176 - 254 V
Operating frequency 40 kHz
Max. no. of ECGs on circuit breaker 10 A 36
Max. no. of ECGs on circuit breaker 16 A 59
Starting time 1.5 s

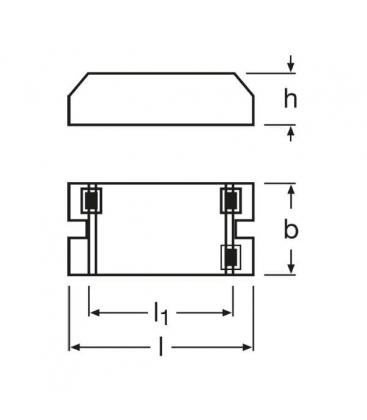

Length 80 mm
Width 40 mm
Height 22 mm
Mounting hole spacing, length 72.0…75 mm
Ambient temperature range –15…+50 °C
Dimmable No
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC
EEI - Energy Label A3
Standards acc. to EN 61347-2-3/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
Benefits
• Compact housing
• Automatic restart after lamp replacement
Areas of application
• Public buildings
Features
• Supply voltage: 220 - 240 V
• Line voltage: 198 - 264 V
• Line frequency: 50 Hz | 60 Hz
• Energy Efficiency Index EEI: A2
• Automatic shutdown of defective lamps and at end of life (EoL)
