Mini T5 G5 UV-C 6W

Cap-Base G5
Bulb T5
Main Application Disinfection
Useful Life 9000 h
Lamp Wattage 6 W
Lamp Wattage Technical 6 W
Lamp Voltage 42 V
Lamp Current 0.16 A
Mercury (Hg) Content 4.4 mg
UV-C Radiation 1.7 W

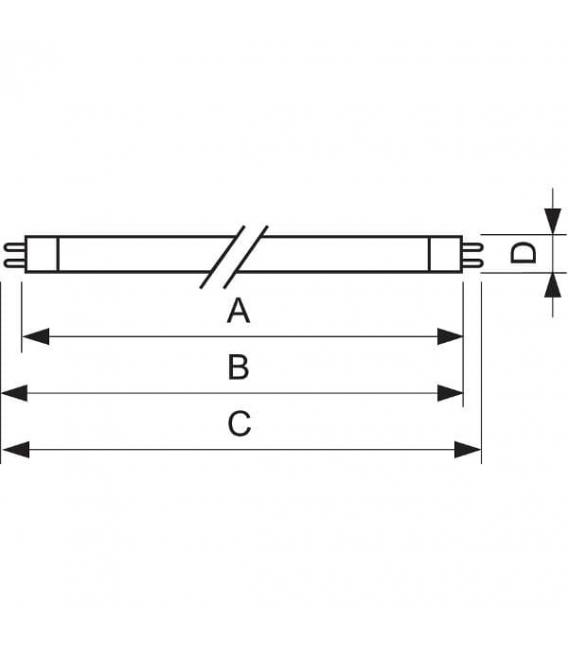

Reference Length A 212.1 (max) mm
Overall Length B 216.8 (min), 219.2 (max) mm
Overall Length C 226.3 (max) mm
Diameter D 16 (max) mm

Benefits
• Small diameter lamps for residential applications
• Security of effective disinfection over the useful lifetime of the lamp
• High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
• Good environmental choice because of lowest amount of mercury

Features

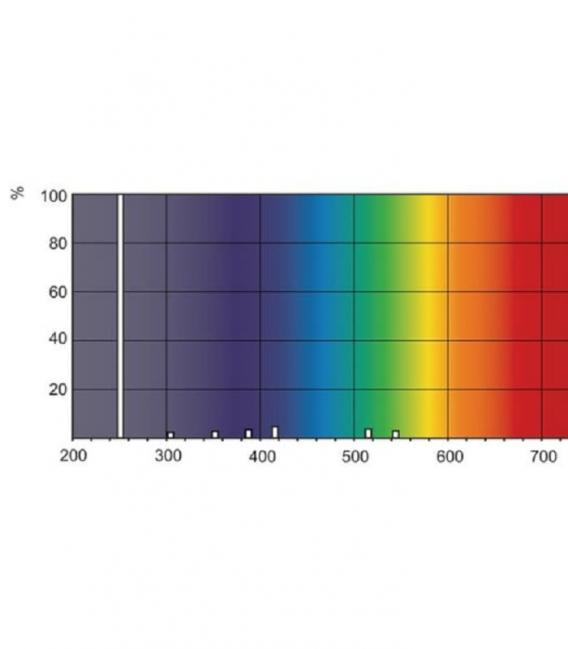

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• Warning sign on lamp indicates that the lamp radiates UVC

Applications
• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond water units
• In-duct air treatment units
• Stand alone air purifiers

General safety informations
