Lamp holders G5 T5

Lampholder G5 09440

254357 | Manufacturer: Vossloh Schwabe | EAN: 4014364254357 | MPN: 505747

Lampholder G5 for fluorescent lamps T5 (T16).  This lampholder type, which is frequently found in surface-mounted ceiling and built-in luminaires, is pushed into the luminaire casing from above.


0,43 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 10

-+

More info

G5 push-fit lampholder
Lamp axis: 14 mm
Casing: PBT GF, white, rotor: PBT GF, white
T140, nominal rating: 2/500
Push-in twin terminals: 0.5–1mm²
Rear fixing clips for wall thickness 0.6–1 mm
Base or lateral wiring

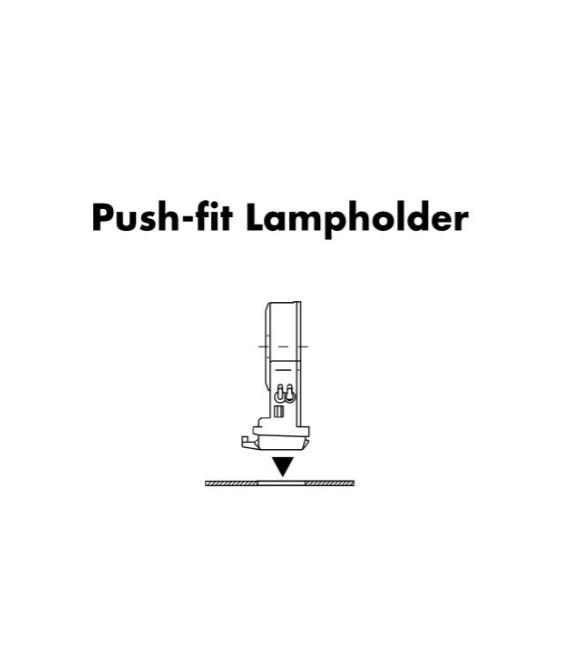

Push-fit lampholders
This lampholder type, which is frequently found in surface-mounted ceiling and built-in luminaires, is pushed into the luminaire casing from above. The lampholder foot should protrude by no more than 4 mm to match the usual height of the spacing cams in the luminaire casing. These lampholders are mostly wired above the luminaire casing to the side of the lampholder. However, there are also lampholders on which the wiring runs through the lampholder foot, with the leads laid beneath the luminaire casing.

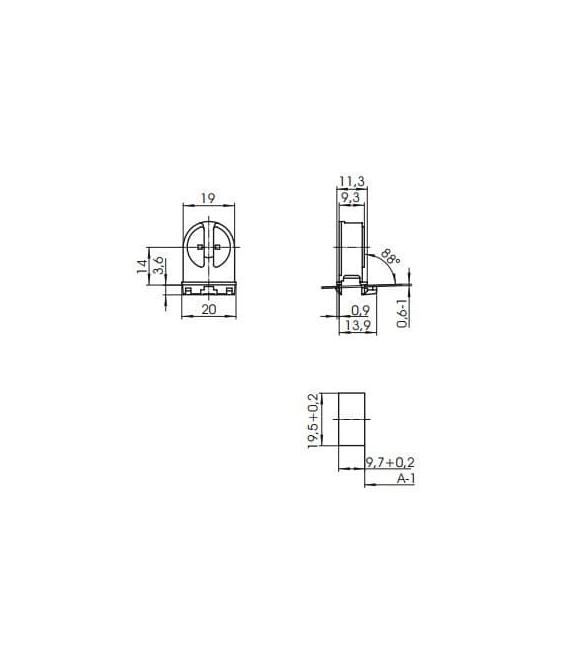

Data sheet

Data sheet: Lamp holders G5 T5 Lampholder G5 09440

Base/SockelG5
Factory Box - pieces (pcs)10
Download

Download: Lamp holders G5 T5, Lampholder G5 09440

General safety informations

Reviews    1 review

Total rating: 5,00 / 5

Based on 1 review


Write a Review


5 - Rating

Kvalitetna plastika, po vgradnji v ustrezno odprtino so obrnjeni zgoraj rahlo skupaj, da sijalko drži pri montaži navzdol.

,
