974242 | Manufacturer: Osram | EAN: 4008321974242 | MPN: HCI-TC-35-930-PLUS
Osram G8 HCI TC 35W 930 wdl pb plus lamp category 5. Illuminate your space with the G8.5 Lamp HCI-TC-35W 930 wdl pb Plus, a standout in our Metal Halide Lamps category. Experience superior brightness and energy efficiency today
Nominal wattage 35 W
Lamp current 0.46000 A
Rated wattage 39 W
Ignition voltage 3 / 5 kVp
Energy consumption 43 kWh/1000 h
Luminous flux 4000 lm
Color rendering index Ra90
Color temperature 3000 K
Luminous efficacy 103 lm/W
Light color 930
Rated LLMF at 12000 h 0.78
UV protection Yes

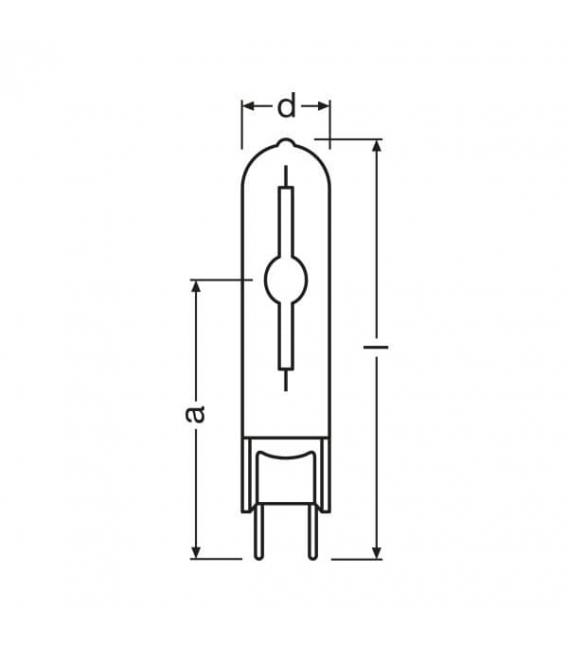

Diameter 20 mm
Length 85 mm
Light center length (LCL) 52 mm
Lamp mercury content 4.7 mg
Maximum permitted pinch temperature 300 °C
Maximum permitted outer bulb temperature 500 °C
Rated lamp survival factor at 12000 h 0.80
Lifespan B50 15000 h
Operation mode LLMF/LSF ECG
Base (standard designation) G8.5
Only for operation with electronic control gear with 70…400 Hzsquare-wave current
System guarantee level 3 (2/5)
Dimmable No
Burning position Any
Enclosed luminaire required Yes
Energy efficiency class A+
Benefits
• Higher efficiency in comparison to HCI-TC
• Better luminous flux maintenance in comparison to HCI-TC
• Excellent color rendering
• Very good rendering of red tones
• Very good color stability
• UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Applications

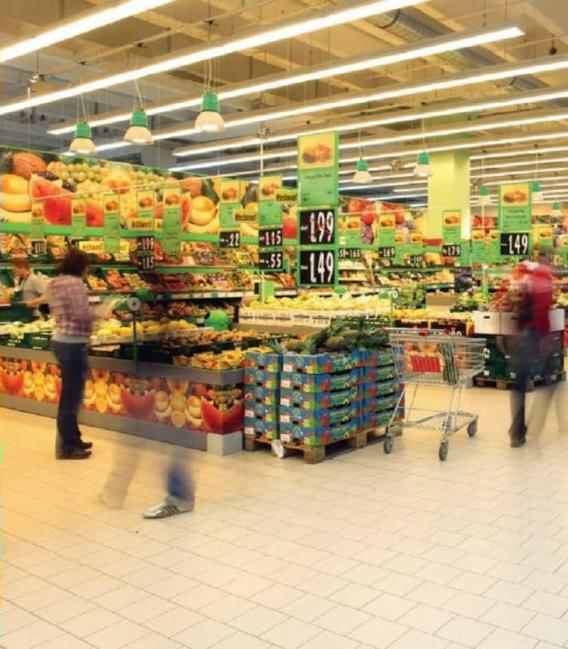

• Shop interiors, shop windows
• Shopping arcades
• Foyers, reception areas
• Museums, exhibitions
• Accent lighting
• Decorative lighting
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires
Explanation It needs ballast | yes |
Explanation Energy efficiency class | A+ |
Explanation Lamp holder, lamp socket | G8.5 |
Explanation Wattage - (W) | 35 |
Explanation Luminous flux - (lm) | 4000 |
Explanation Luminous efficacy - (lm / W) | 114 |
Explanation Color temperature - (K) | 3000 |
Explanation Light color code | 930 |
Explanation Color rendering - (CRI) | 90 |
Explanation Energy consumption - (kWh / 1000h) | 35 |
Explanation Lifetime - (h) | 15000 |
Explanation Factory packed - (pieces) | 12 |
Bulb type | discharge lamps |
Technology | HID |
