Philips Master TL5 14W 840 he High Efficient G5

System Description High Efficiency
Cap-Base G5
Cap-Base Information Green Plate
Bulb T5 [16 mm]
Life to 10% fail Preheat EL,3h 19000h
Life to 50% fail Preheat EL,3h 24000h

Color Code 840 [CCT of 4000K]
Color Rendering Index 85 Ra8
Color Designation (text) Cool White
Color Temperature 4000K
Luminous Flux EL 25 °C, Rated 1250 lm
Luminous Flux EL 25 °C, Nominal 1250 lm
Luminous Flux Lamp EL 35 °C 1350 lm
Lum Efficacy Rated HF 25 °C 89 lm/W
Lum Efficacy Rated HF 35 °C 99 lm/W
LLMF HF 2000h Rated 96%
Design Temperature 35 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 380 -

Lamp Wattage 14W
Lamp Wattage EL 25 °C, Rated 14W
Lamp Wattage EL 25 °C, Nominal 14W
Lamp Wattage EL 35 °C 13.7W
Lamp Voltage EL 25 °C 86V
Lamp Voltage EL 35 °C 82V
Lamp Current EL 25 °C 0.165A
Lamp Current EL 35 °C 0.170A
Dimmable Yes

Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000h 15 kWh

Calibration Current 0.170A
HF Generator Rated Voltage 167V
Resistor 500 ohm

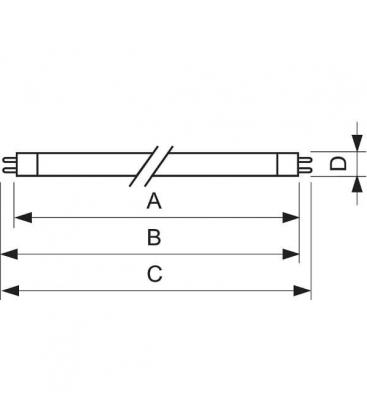

Base Face to Base Face A 549.0 (max) mm
Insertion Length B 553.7 (min), 556.1 (max) mm
Overall Length C 563.2 (max) mm
Diameter D 17 (max) mm

The MASTER TL5 High Efficiency family
This TL5 lamp (tube diameter 16 mm) has a high luminous efficacy, resulting in low energy consumption. The High Efficiency TL5 lamp offers excellent lumen maintenance and good color rendering. Application areas are offices, industry, public and governmental buildings, schools, hospitals and indoor sports lighting.

Features
-40% thinner and 5 cm shorter than corresponding TL-D lamps
-High lamp efficacies up to 104 lm/W
-Specifically designed for operation with electronic gear
-Maximum light output reached at approximately 35 °C in free-burning position

Applications
-Ideally suited for recessed, surface-mounted and suspended luminaires in applications like offices, shops, schools, public buildings and industry (low ceiling), wherever high-quality, energy-effective lighting is required
