Osram T5 FQ 24W 840 ho High Output G5

Nominal wattage 22.5W
Rated lamp efficacy (standard condition) 78 lm/W
Rated wattage 22.5W

Color rendering index Ra≥80
Rated luminous flux 1750 lm
Luminous flux at 25 °C 1750 lm
Luminous flux at 35 °C 2000 lm
Light color 840
Color temperature 4000K
Nominal luminous flux 1750 lm
Light color as per EN 12464-1 LUMILUX Cool White
Rated LLMF at 2000h 0.95
Rated LLMF at 4000h 0.92

Tube diameter 16 mm

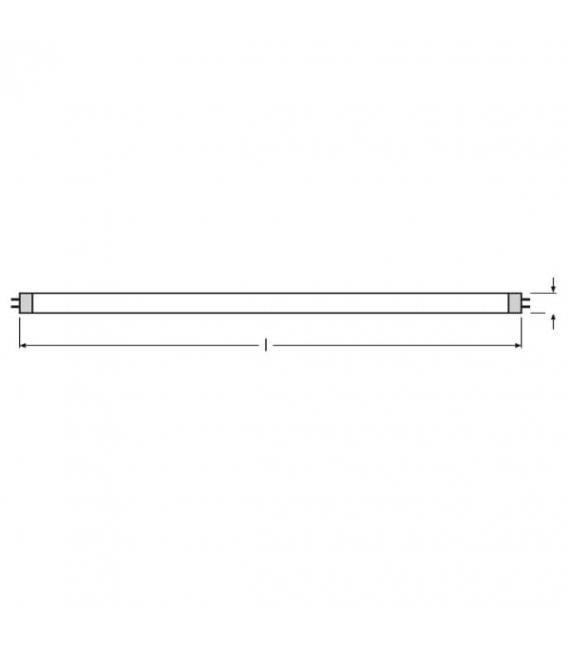

Length 549 mm
Length with base excl. base pins/connection 549 mm
Diameter 16 mm
Maximum diameter 16 mm

Rated ambient temp.w.max.luminous flux 35 °C

Service life 19000h
Lifespan 24000h
Operation mode LLMF/LSF HF
Rated lamp life time 24000h
Nominal lamp life time 24000h

Base (standard designation) G5
Lamp mercury content 1.5 mg
Appropriate disposal acc. to WEEE Yes
Footnote only for product Suitable for ECG operation only/Lamp designed for internal luminaire temperatures of 30…40 °C; optimum luminous flux achieved at 35 °C

Dimmable Yes
Suitable for indoor Yes

Energy efficiency class A+
Energy consumption 25 kWh/1000h

Product benefits
-Excellent luminous flux
-Up to 20% more economical than LUMILUX T8
-Up to 50% smaller volume than comparable T8 lamps
-Natural colors

Areas of application
-Industry
-Public buildings
-Offices
-Tunnels, underpasses
-Car parks
