HTI 1200W se XS GY22

Add to compare

Print PDF

Product tags

Speciality Retrofit Lamp HTI 1200W se XS GY22: Illuminate your space with the Speciality Retrofit Lamp HTI. With a high degree of luminance and the ability to concentrate and redirect light, this lamp is perfect for modern effect lighting systems. Its impressive technical specifications include a nominal wattage of 1200W, color temperature of 5400K, and a lifespan of 750 hours. Experience high luminous efficacy and efficiency with this exceptional lamp. Safety precautions must be taken due to its UV radiation and high internal pressure during operation.

More info

Nominal wattage 1200 W
Nominal voltage 95 V
Lamp voltage 100 V
Nominal current 13.8 A
Lamp current 12.7 A
Luminous flux 105000 lm
Luminance 26000 cd/cm²
Color temperature 5400 K

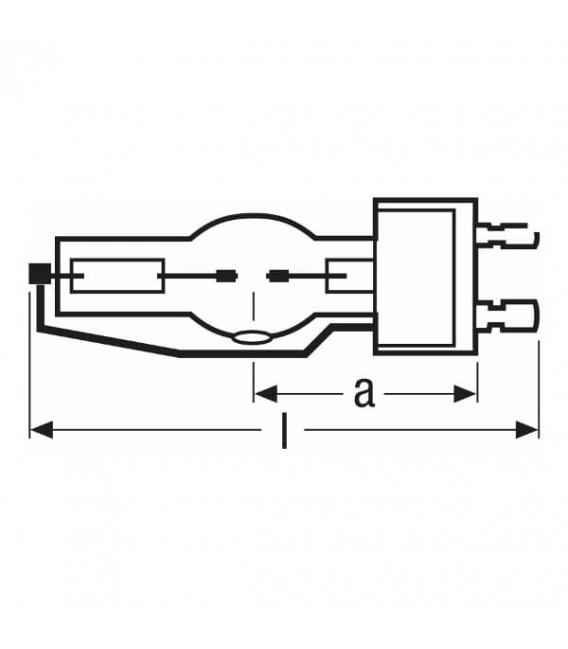

Length 135 mm
Light center length (LCL) 59 mm
Lifespan 750 h
Base (standard designation) GY22
Product remark SE = Single ended/XS = eXtreme Seal (maximum permissible foil temperature 450 °C)
Burning position s135
EEI - Energy Label B

Benefits
• High luminance
• High luminous efficacy and efficiency

SAFETY ADVICE
Because of their high luminance, UV radiation and high internal pressure during operation, HTI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Dimmable	no
Energy efficiency class	B
Lamp holder, lamp socket	GY22
Wattage - (W)	1200
Luminous flux - (lm)	105000
Luminous efficacy - (lm / W)	88
Color temperature - (K)	5400
Energy consumption - (kWh / 1000h)	1200
Lifetime - (h)	750
Factory packed - (pieces)	1

General safety informations
