024370 | Manufacturer: Osram | EAN: 4050300024370 | MPN: NAV-E-150-4Y
NAV 150W super 4Y E40 sodium lamps performance
More info
Osram NAV 150W super 4Y E40 sodium lamps performance Lamp E. Illuminate your space with the Sodium Lamp NAV-E 150W super 4Y E40. Experience superior brightness and energy efficiency in this sodium lamp category.
Nominal voltage 100 V
Nominal wattage 150 W
Rated wattage 152 W
Lamp current 1.8 A
Ignition voltage 3.3 / 5 kVp
Rated lamp efficacy (standard condition) 112 lm/W
Energy consumption 168 kWh/1000 h
Nominal luminous flux 17000 lm
Rated luminous flux 17000 lm
Color temperature 2000 K
Color rendering index Ra < = 25
Rated LLMF at 2000 h 0.98

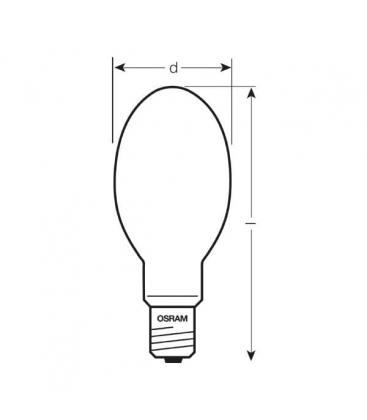

Diameter 91 mm
Length 226 mm
Lamp mercury content 24 mg
Maximum permitted outer bulb temperature 310 °C
Maximum permitted base edge temperature 210 °C
Lifespan B50 32000 h
Rated lamp survival factor at 2000 h 0.99
Operation mode LLMF/LSF 50 Hz
Base (standard designation) E40
Design / version Coated
Footnote used only for product Important: Before replacing for NAV Standard lamps in existing installations, check that the igniters are suitable
Dimmable Yes
Burning position Any
Enclosed luminaire required No
Energy efficiency class A+
Benefits
• Dimmable on conventional control gears and electronic control gears
• Optimum energy efficiency on POWERTRONIC PTo 3DIM ECGs
• Up to 25% longer life than standard lamps
• Greater reliability than standard lamps
• Up to 20% higher luminous efficiency than standard lamps
• Greater mast spacing possible than with standard lamps
• Better luminous flux maintenance than standard lamps
• Four year relamping cycle
Areas of application
• Streets

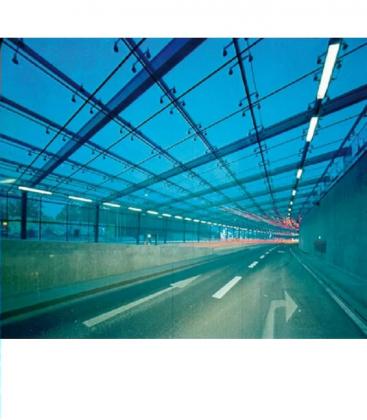

• Tunnels, underpasses
• Buildings, monuments, bridges
• Industrial installations
• Car parks, courtyards
• Parks and gardens
• Outdoor applications only in suitable luminaires
| Explanation It needs ballast | yes |
| Explanation Energy efficiency class | A+ |
| Explanation Lamp holder, lamp socket | E40 |
| Explanation Wattage - (W) | 150 |
| Explanation Luminous flux - (lm) | 17000 |
| Explanation Luminous efficacy - (lm / W) | 113 |
| Explanation Color temperature - (K) | 2000 |
| Explanation Color rendering - (CRI) | 25 |
| Explanation Energy consumption - (kWh / 1000h) | 150 |
| Explanation Lifetime - (h) | 32000 |
| Explanation Factory packed - (pieces) | 12 |
