Sodium lamps

Osram Nav E 70W I E27 No igniter required

015590 | Manufacturer: Osram | EAN: 4050300015590 | MPN: NAV-E-70-I

VIALOX NAV-E/I High-pressure sodium vapor lamps with internal igniter.


11,61 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 24

-+

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points, that can be converted into a voucher of 0,20 €.

More info

Nominal wattage 70W
Rated wattage 70W
Lamp current 0.98000A
Nominal voltage 90V
Ignition voltage 0.198 kVp
Rated lamp efficacy (standard condition) 84 lm/W

Rated luminous flux 5900 lm
Color rendering index Ra≤25
Color temperature 2000K
Rated LLMF at 2000h 0.86

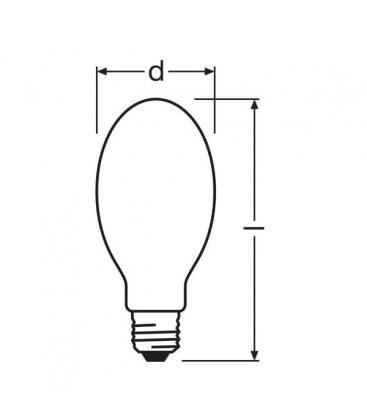

Diameter 71 mm
Length 156 mm

Maximum permitted outer bulb temperature 310 °C
Maximum permitted base edge temperature 210 °C

Lifespan B50 24000h
Lifespan B10 14000h
Lifespan B5 12000h
Operation mode LLMF/LSF 50Hz

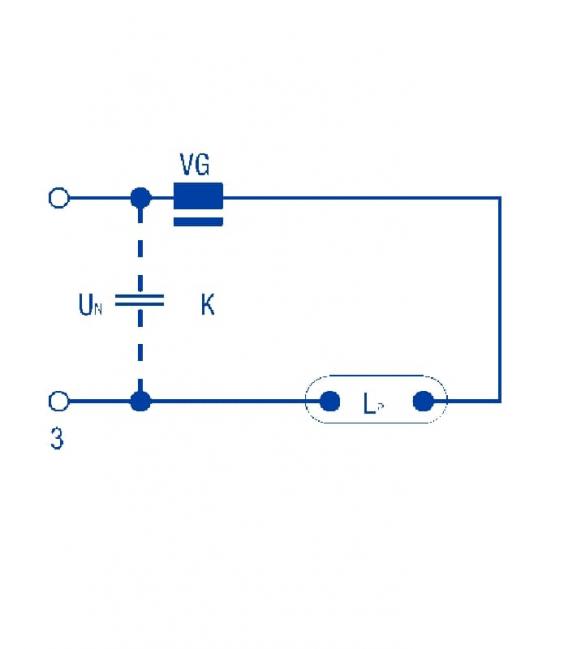

Product remark Operate only with NAV control gear. No igniter required
Base (standard designation) E27
Design / version Coated
Lamp mercury content 19 mg

Dimmable Yes
Burning position Any
Enclosed luminaire required No

Energy efficiency class A
Energy consumption 77 kWh/1000h

Product benefits
-High luminous efficacy

Areas of application

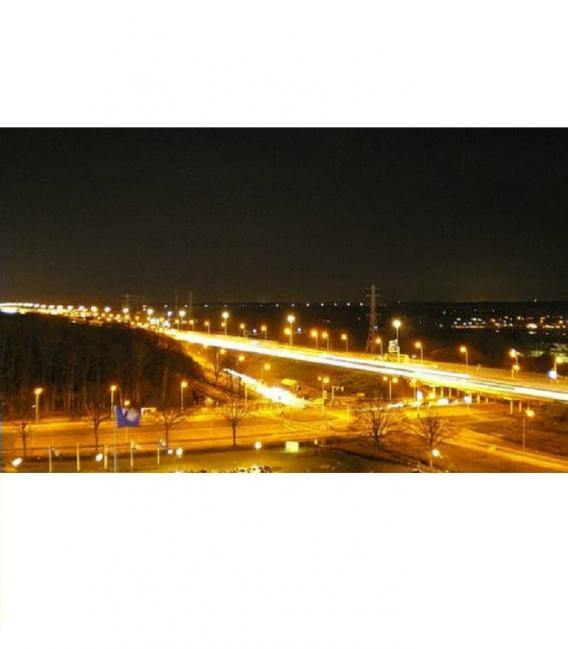

-Streets
-Outdoor lighting
-Industrial installations
-Suitable for use in open and enclosed luminaires
-Outdoor applications only in suitable luminaires

Data sheet

Data sheet: Sodium lamps Nav E 70W I E27 No igniter required

It needs ballastYes
Energy Efficiency ClassA
Base/SockelE27
Wattage - Watt (W)70
Luminous flux - Lumen (lm)5900
Luminous Efficacy Lamp - (lm / W)84
Light color temperature - Kelvin (K)2000
Color rendering index - CRI25
Energy consumption - (kWh / 1000h)70
Lifetime - hours (h)24000
Factory Box - pieces (pcs)24
Download

Download: Sodium lamps, Nav E 70W I E27 No igniter required
