955066 | Manufacturer: Osram | EAN: 4052899955066 | MPN: LINE-S19-9W/827

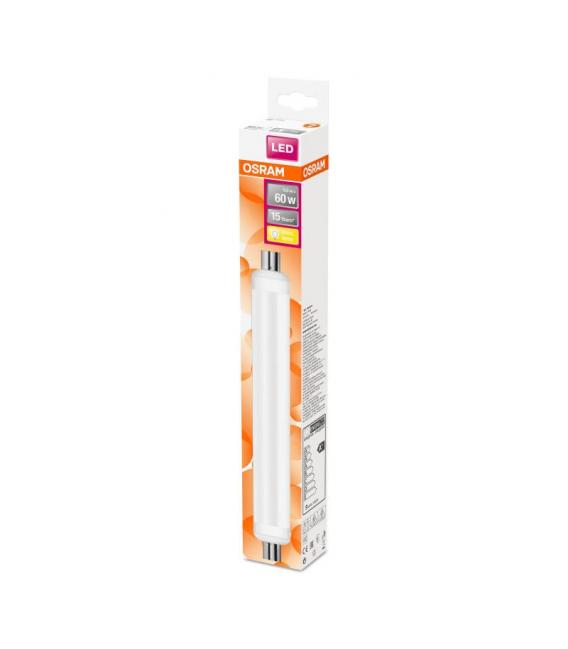

Linear star line 9W 827 FR S19 LED lamp S14s
More info
Rated wattage 9 W
Nominal wattage 9 W
Nominal voltage 220 - 240 V
Operating frequency 50 - 60 Hz
Power factor λ > 0.50
Claimed equiv. conventional lamp power 60 W
Nominal luminous flux 806 lm
Rated luminous flux 806 lm
Rated color temperature 2700 K
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Luminous flux 806 lm
Color rendering index Ra≥80
Standard deviation of color matching ≤6 sdcm
Color rendering index Ra≥80
Warm-up time (60%) < 0.5s
Starting time < 0.5s

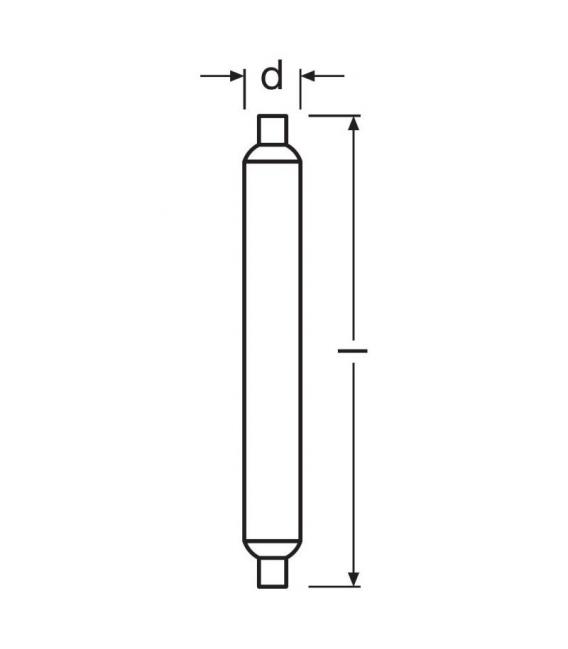

Overall length 310 mm
Diameter 38 mm
Outer bulb T38
Length 310 mm
Maximum temperature at tc test point 67 °C
Nominal lamp life time 15000 h
Rated lamp life time 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service life 0.70
Base (standard designation) S19s
Mercury content 0 mg
Mercury-free Yes
Design / version Frosted
Show WEEE picto Yes
Dimmable No
Energy efficiency class A+
Energy consumption 9 kWh/1000 h
Benefits
• Long life
• Low energy consumption
• No UV and near-IR radiation in the light beam
• Three year guarantee
Applications
• Domestic applications
• Outdoor applications only in suitable luminaires
Features
• Led alternative to conventional lamps
• Mercury-free lamps
