PL G23 UV TUV 5W efficiency sterilization lamp

Philips PL G23 UV TUV 5W efficiency sterilization lamp S C. Experience the power of PL-S G23 UV-C TUV 5W, a standout in our range sterilization lamps. Offering efficient and effective germ elimination for your peace mind.

Cap-Base G23
Cap-Base Information 2 Pins
Bulb 2 × T12
Main Application Disinfection
Useful Life 9000 h
Lamp Wattage 5 W
Lamp Wattage Technical 5.5 W
Lamp Voltage 34 V
Lamp Current 0.18 A
Color Code TUV
UV-C Radiation 1.1 W

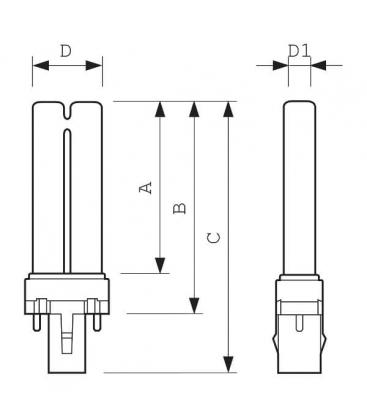

Base Face to Base Face A 67 (max) mm
Insertion Length B 83 (max) mm
Overall Length C 105 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm
TUV PL-S lamps are compact UVC germicidal lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-S lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Features

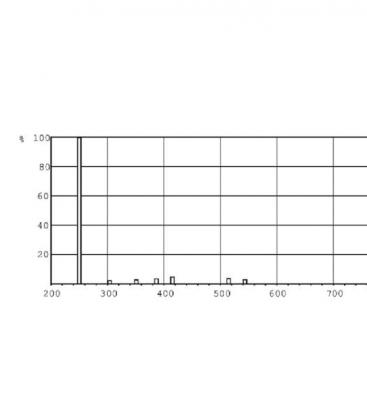

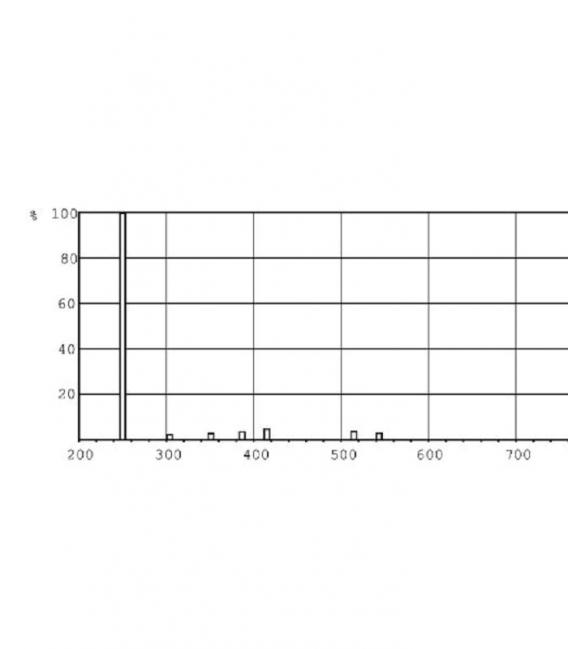

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
• High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
• Warning sign on lamp indicates that the lamp radiates UVC

Applications
• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond and process water units
• In-duct air treatment units
• Stand alone air purifiers
• Air disinfection systems in for example hospitals, universities and laboratories

General safety informations
