Mini T5 G5 UV TUV 25W 4P compact sterilization lamp

Experience powerful sterilization with the Mini T5 G5 UV-C TUV 25W 4P. This compact lamp offers efficient, reliable germ elimination for a safer environment.

Cap-Base G10q
Cap-Base Information 4 Pins Single Ended
Bulb T16
Main Application Disinfection
Useful Life 9000 h
Lamp Wattage 25 W
Lamp Wattage Technical 23 W
Lamp Voltage 82 V
Lamp Current 0.35 A
UV-C Radiation 8 W
Reference Length A 548.9 (max) mm
Overall Length C 556.6 (max) mm
Diameter D 19.3 (max) mm

Benefits
• Small diameter lamps for residential applications
• Security of effective disinfection over the useful lifetime of the lamp
• High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
• Good environmental choice because of lowest amount of mercury

Features

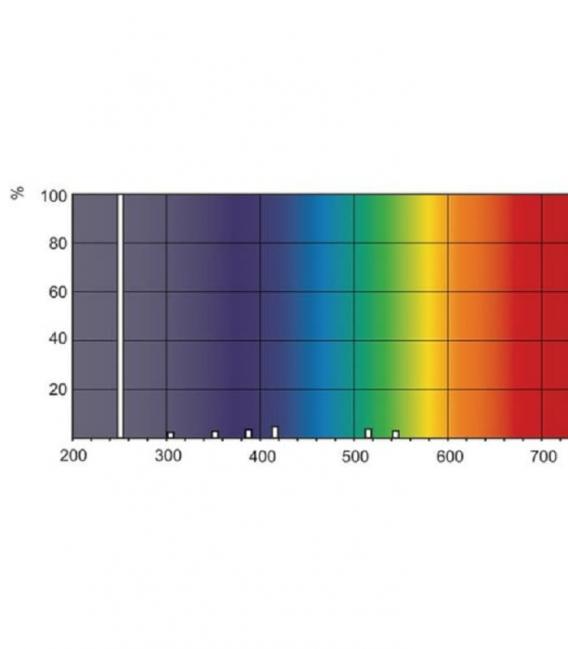

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• Warning sign on lamp indicates that the lamp radiates UVC

Applications
• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond water units
• In-duct air treatment units
• Stand alone air purifiers

General safety informations
