1362476 | Manufacturer: Osram | EAN: 4008321362476 | MPN: OT-75-220-240-24-E
Optotronic OT 75 220V 24V IP64 LED power supply supplies drivers
More info
Osram Optotronic OT 75 220V 24V IP64 LED power supply supplies drivers. Illuminate your space with the Optotronic OT 75 LED power supply. Reliable, efficient, and IP64 rated for durability. Perfect all lighting needs.
Output power 75 W
Input voltage 198…254 V
Mains frequency 50 - 60 Hz
Output voltage 24 V
ECG efficiency 89%
Nominal voltage 220 - 240 V
Nominal current 0.38 A
Device power loss 8.5 W
Power factor λ N/A
Inrush current 41 A
Galvanic isolation primary/secondary 3.75 kV
Surge capability (L/N-Ground) 3 kV

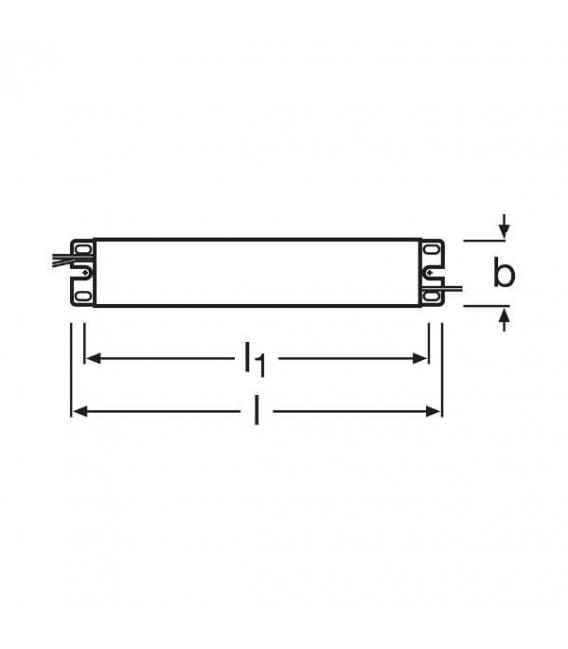

Length 241 mm
Width 43 mm
Height 30 mm
Cable cross-section, input side 0.83 mm²
Cable cross-section, output side 2.1 mm²
Wire preparation length, input side 10 mm
Casing material Metal
Ambient temperature range –20…+60 °C
Maximum temperature at tc test point 85 °C
Max.housing temperature in case of fault 110 °C
ECG lifetime 50000 h
Dimmable No
Suitable for fixtures with prot. class I
Overheating protection Automatic reversible
Overload protection Automatic reversible
Short-circuit protection Automatic reversible
No-load proof Yes
Type of protection IP64
Standards acc. to IEC 61347/acc. to IEC 60598/acc. to IEC 62384/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
Approval marks - approval CE / ENEC 18 / VDE / VDE-EMC / GHOST / C-Tick
Benefits
• Very high efficiency and reliability
• Versatile scope of application due to output power range of up to 240 W
• Constant luminous flux for very low and high temperatures due to Smart Power Supply
Areas of application
• Suitable for indoor and outdoor SELV installations
• Suitable for use in tight, flat luminaires or installation in suspended ceilings
• Outdoor applications only in suitable luminaires
| Explanation Dimmable | yes |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 75 |
| Explanation Energy consumption - (kWh / 1000h) | 75 |
| Explanation Protection mark - (IPXX) | 64 |
| Explanation Lifetime - (h) | 50000 |
| Explanation Factory packed - (pieces) | 10 |
