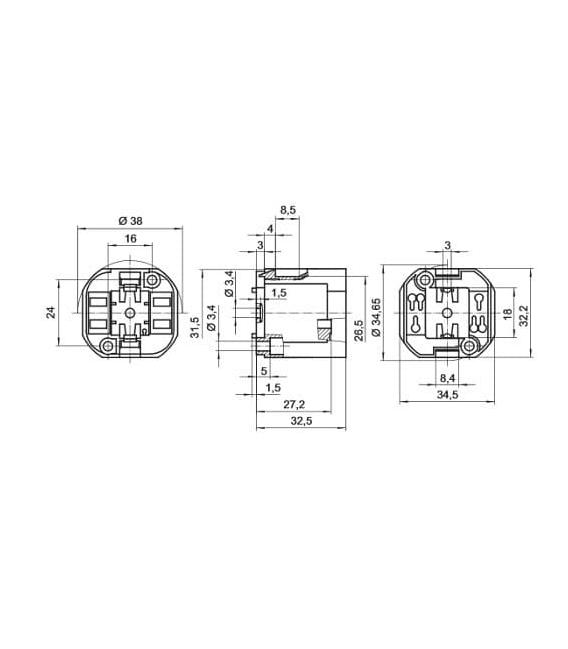

Vossloh Schwabe Lampholder Base GX24q 3,4 TC tEL

Lamp base: GX24q-3,4
Lamp: TC-TEL
Output: 26W, 32W/42W
Plain casing
Casing: PBT GF, white, T140
Nominal rating: 2/500
Push-in twin terminals: 0.5–1mm² (lamp circuit)
In addition for G24q, GX24q lampholders: push-in terminals: 0.5–1mm² (starter circuit)
Rear fixing holes for self-tapping screws acc. to ISO 1481/7049-ST4.2-C/F
Front fixing holes for screws M3
Central fixing hole for screw M3
Rotation stop

Lampholder 527745 may only be used in luminaires that are operated with electronic ballasts that have been certified according to the applicable standards and that cover the luminaire performance range of 26, 32 and 42W.

When mounting the lampholder it has to be considered that the TC-T and TC-TEL lamp is wider than the lampholder. When using the central hole for mounting additional depressions for anti-rotation pips have to be provided.
