Vossloh Schwabe Lampholder Base G24d 3 TC-D TC t

Lamp base: G24d-3/GX24d-3
G24, GX24 surface-mounted lampholders
Casing: PBT GF, white, T140, Nominal rating: 2/500
Push-in twin terminals: 0.5 - 1 mm² (lamp circuit)

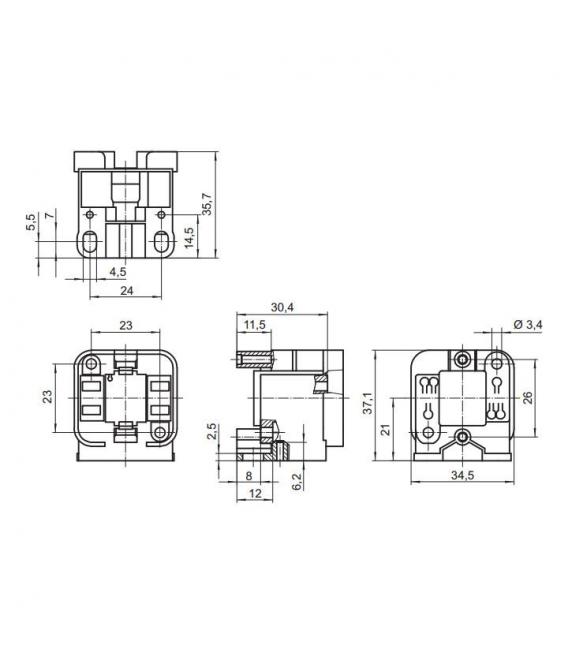

Base oblong holes for screws M4
Front fixing holes for screws M3

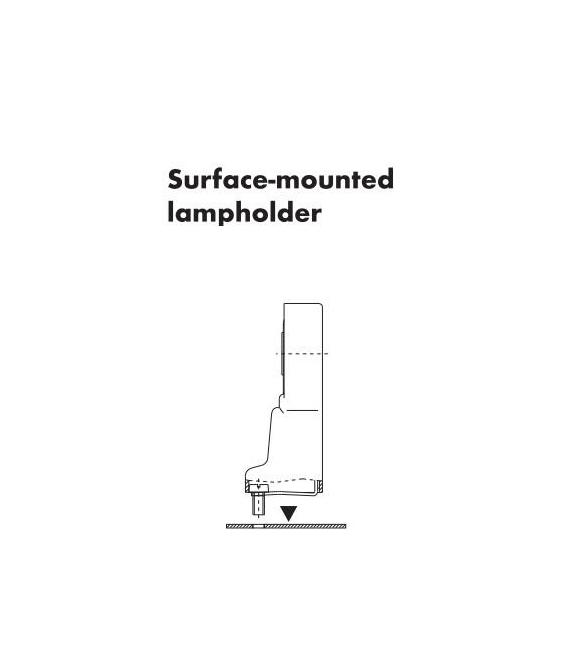

Surface-mounted lampholders
The fastening system of surface-mounted lampholders usually consists of screws or rivets above a fixing level,along which the wiring is also laid. As this type of installation is usually too costly nowadays for large unitnumbers, these lampholders are used almost exclusively for special applications, e.g. displays or illuminatedadvertisements.
