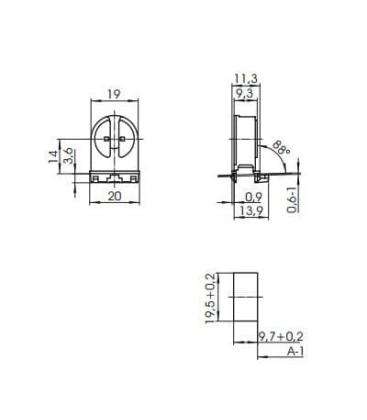

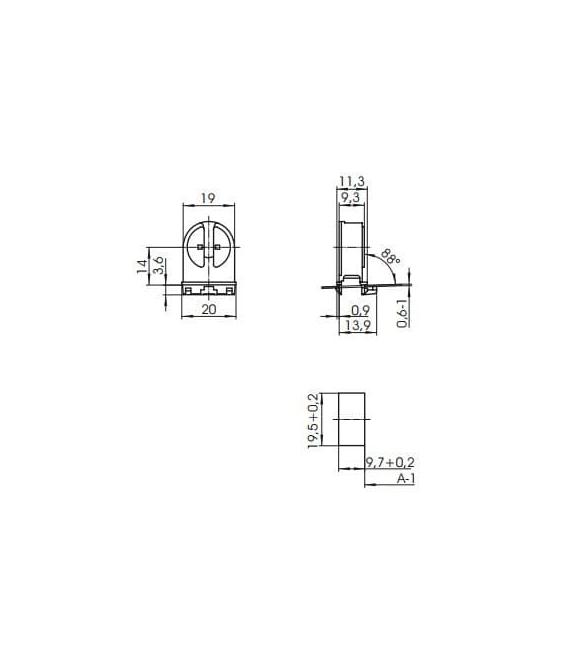

Vossloh Schwabe Okov G5 09440

G5 push-fit lampholder
Lamp axis: 14 mm
Casing: PBT GF, white, rotor: PBT GF, white
T140, nominal rating: 2/500
Push-in twin terminals: 0.5–1mm²
Rear fixing clips for wall thickness 0.6–1 mm
Base or lateral wiring

Push-fit lampholders

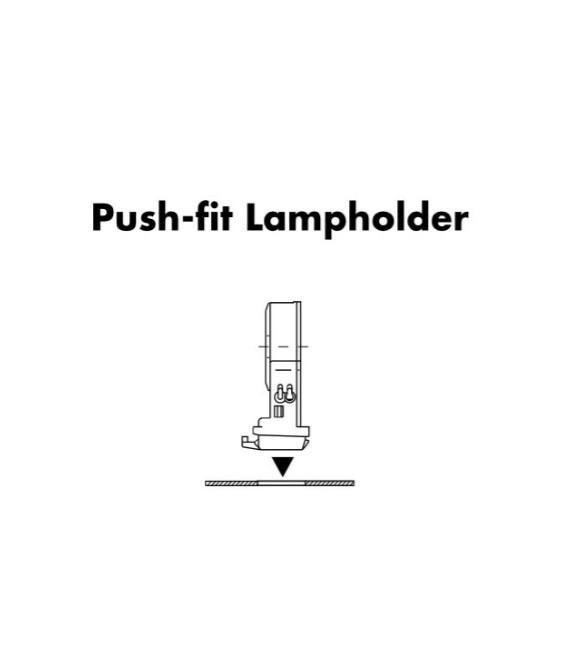

This lampholder type, which is frequently found in surface-mounted ceiling and built-in luminaires, is pushed into the luminaire casing from above. The lampholder foot should protrude by no more than 4 mm to match the usual height of the spacing cams in the luminaire casing. These lampholders are mostly wired above the luminaire casing to the side of the lampholder. However, there are also lampholders on which the wiring runs through the lampholder foot, with the leads laid beneath the luminaire casing.
