K12s HQI TS 1000W pro lamp quality metal halide

Osram K12s HQI TS 1000W pro lamp quality metal halide D S. Illuminate your space with the K12s HQI-TS 1000W D S Pro Lamp, a top-tier choice in our Metal Halide Lamps category. Experience superior brightness and efficiency today

Nominal wattage 1000 W
Rated wattage 1000 W
Lamp current 9.6 A
PFC capacitor at 50 Hz 85µF
Nominal voltage 120 V
Ignition voltage 4 / 5 kVp
Rated lamp efficacy (standard condition) 90 lm/W

Rated luminous flux 90000 lm
Color rendering index Ra 85
Color temperature 6100 K
Light color 860
Rated LLMF at 2000 h 0.98
Rated LLMF at 4000 h 0.98
Rated LLMF at 6000 h 0.97
Rated LLMF at 8000 h 0.88
UV protection No

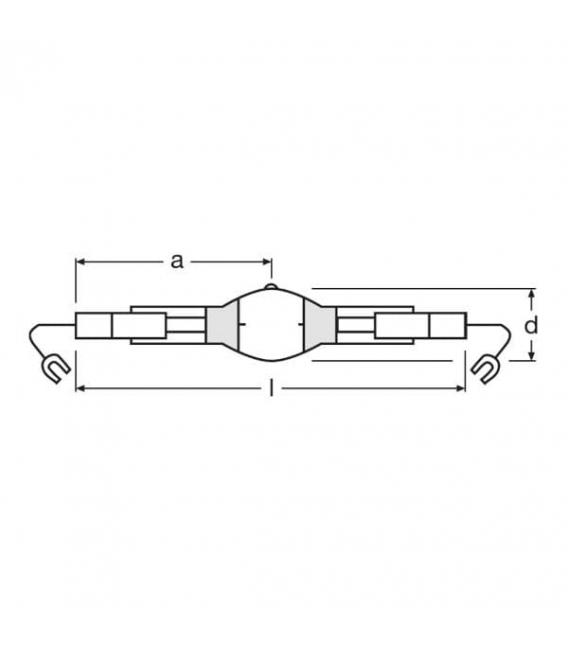

Diameter 41 mm
Length 187 mm
Light center length (LCL) 93 mm
Maximum permitted outer bulb temperature 950 °C
Maximum permitted pinch temperature 390 °C
Rated lamp survival factor at 2000 h 0.95
Rated lamp survival factor at 4000 h 0.77
Rated lamp survival factor at 6000 h 0.65
Rated lamp survival factor at 8000 h 0.50
Lifespan B50 8000 h
Base (standard designation) K12s-36
Design / version Clear
Lamp mercury content 70 mg
Dimmable No
Burning position p15
Enclosed luminaire required Yes
Hot restart Yes
Energy efficiency class A+
Energy consumption 1100 kWh/1000 h

Benefits
• High efficiency
• Good to excellent color rendering
• Excellent color stability
• Small loss of luminous flux over the life of the lamp
• Hot restrike capable
• Compact dimensions for small spotlights
• Good positioning thanks to K12s base

Areas of application
• Sports stadiums and floodlight systems
• Sports halls and multi-purpose halls
• Airports
• Solar simulation, material testing
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires

Features
• Powerstar quartz technology
• Light colors: neutral white (NDL), daylight (D)
