HCI TC 70W 830 wdl pb G8 lamp category

Osram HCI TC 70W 830 wdl pb G8 lamp category 5. Illuminate your space with the Lamp HCI-TC-70W 830 wdl pb G8.5, a standout in our G8.5 Metal halide lamps category. Experience superior brightness and energy efficiency today

Nominal wattage 70 W
Lamp current 0.95000 A
Rated wattage 73 W
PFC capacitor at 50 Hz 12µF
Ignition voltage 3.6 / 5 kVp
Energy consumption 81 kWh/1000 h
Luminous flux 7200 lm
Color rendering index Ra89
Color temperature 3000 K
Luminous efficacy 99 lm/W
Light color 830
Rated LLMF at 2000 h 0.84
Rated LLMF at 4000 h 0.82
UV protection Yes

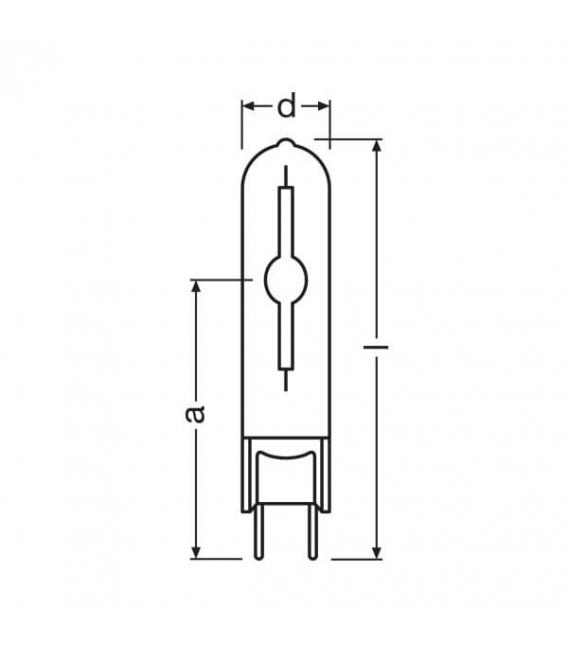

Diameter 15 mm
Length 81 mm
Light center length (LCL) 52 mm
Lamp mercury content 5.2 mg
Maximum permitted pinch temperature 350 °C
Maximum permitted outer bulb temperature 550 °C
Rated lamp survival factor at 2000 h 0.99
Rated lamp survival factor at 4000 h 0.98
Lifespan B50 15000 h
Operation mode LLMF/LSF ECG
Base (standard designation) G8.5
System guarantee level 3 (2/5)
Dimmable Yes
Burning position Any
Enclosed luminaire required Yes
Energy efficiency class A+

Benefits
• Very high efficiency
• Good to excellent color rendering
• Very good color stability
• UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Applications

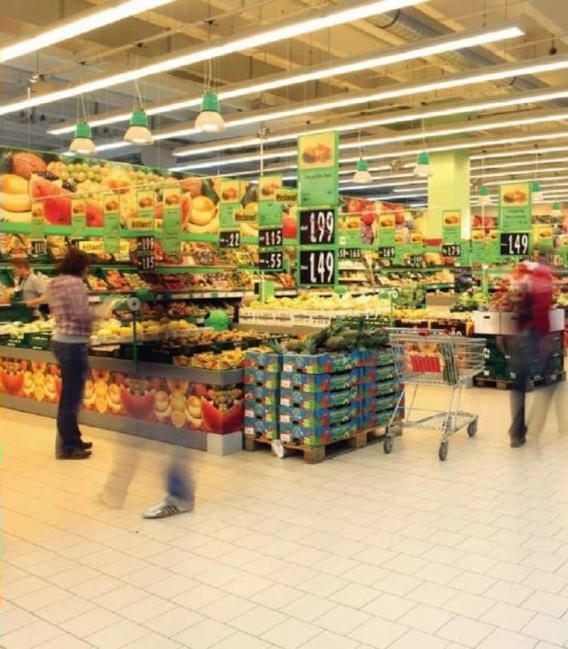

• Shop interiors, shop windows
• Shopping arcades
• Foyers, reception areas
• Museums, exhibitions
• Accent lighting
• Decorative lighting
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires
