Osram HTM 105/230 240V 35 105W mouse

442334 | Manufacturer: Osram | EAN: 4050300442334 | MPN: HTM-105


16,40 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 10

By buying this product you can collect up to 3 loyalty points. Your cart will total 3 points, that can be converted into a voucher of 0,30 €.

-+

More info

More info

Halotronic electronic transformer for 12V low-voltage halogen lamps. Overload, overheating and short-circuit protection.

Lamp wattage 35-105 W
Line current 0.41 A
Power factor λ 0.99
Operating frequency 43 kHz
Nominal output voltage 11.3 / 11.4 V
Input voltage AC 220 - 240 V
Mains frequency 50 - 60 Hz
System wattage 111 W
Input voltage range 207…264 V
Max. ECG no. on circuit breaker 10 A (B) 23
Max. ECG no. on circuit breaker 16 A (B) 38
ECG efficiency 95%
Galvanic isolation primary/secondary 4 kV
Inrush current 1 A

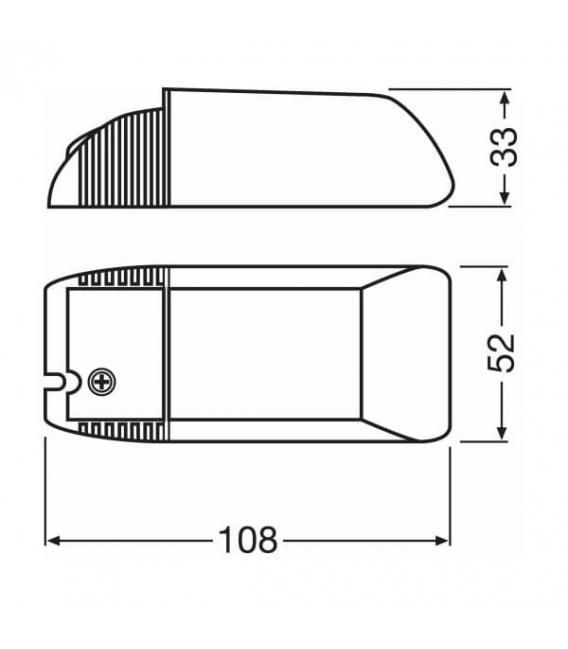

Length 108 mm
Width 52 mm
Mounting hole spacing, length -
Height 33 mm
Mounting hole spacing, width -
Cable cross-section, input side 2.5 mm²
Cable cross-section, output side 2.5 mm²
Wire preparation length, input side 12 / 7 mm
Wire preparation length, output side 12 / 7 mm
Ambient temperature range 0…+45 °C
Maximum temperature at tc test point 85 °C
Design / version Compact with cable clamp
Dimming method Trailing- or leading-edge phase control for inductive load dimmers
Overload protection Automatic reversible
Overheating protection Automatic reversible
Short-circuit protection Automatic reversible
Max. cable length to lamp/Led module 2.0m
Cable/wire types, input side NYM 3 × 1.5 / H05 VV-F 3 × 0.75 / H05 VV-F 3 × 1 / H05 VV-F 3 × 1.5 / H05 VV-F 2 × 0.75 / H05 VV-F 2 × 1 / H05 VV-F 2 × 1.5 / H05 VVH2-F 2 × 0.75 / H05 VVH2-F 2 × 1.5 mm²
Cable/wire types, output side NYM 3 × 1.5 / H05 VV-F 3 × 0.75 / H05 VV-F 3 × 1.5 / H05 VV-F 3 × 1.5 / H05 VV-F 2 × 0.75 / H05 VV-F 2 × 1.5 / H05 VVH2-F 2 × 0.75 mm²
Dimmable Yes
Dimming range 0…100%
No-load proof Yes
Suitable for fixtures with prot. class II
Approval marks - approval VDE / VDE-EMC / E1 approval / EAC
Standards Acc. to EN 61347/Acc. to EN 55015/Acc. to EN 61000 - 3-2/Acc. to EN 61547/Acc. to EN 61047
Type of protection IP20

Benefits
• Dimmable on the leading edge (without HTN) and trailing edge
• Very low power loss thanks to high efficacy
• Strain relief suitable for different cable types (HTM)

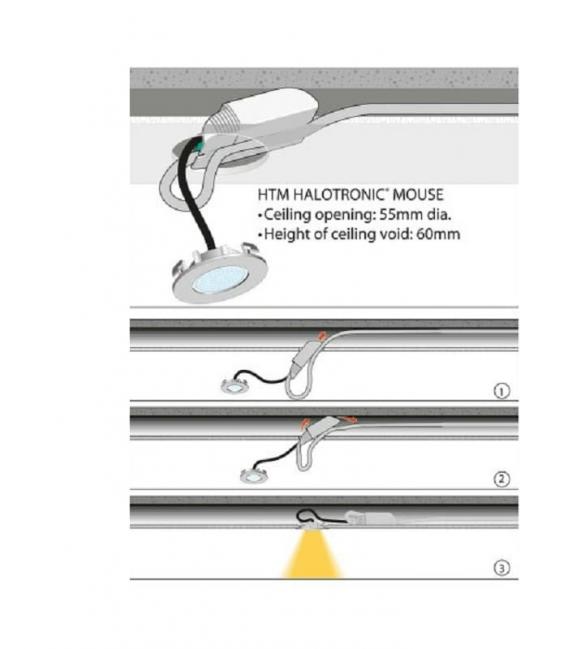

• Suitable for space-critical installation thanks to compact functional design
• Extremely compact transformer for highly space-critical installation conditions (HTN)
• Protective operation throughout the entire partial-load range for long lamp life

Areas of application
• Effect and accent lighting
• Living rooms
• Object lighting
• Conference rooms
• Restaurants
• Recessed and surface-mounted furniture luminaires
• Shop lighting
• Event rooms

DimmableYes
Voltage - Volt (V)220
Wattage - Watt (W)105
International Protection Marking - (IPXX)IP20
Factory Box - pieces (pcs)10
