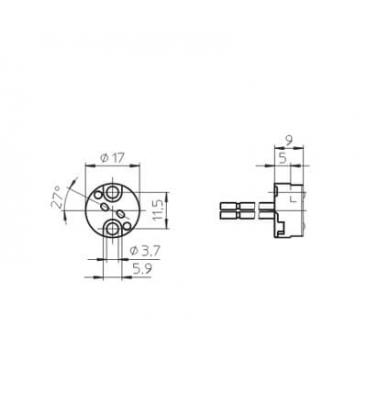

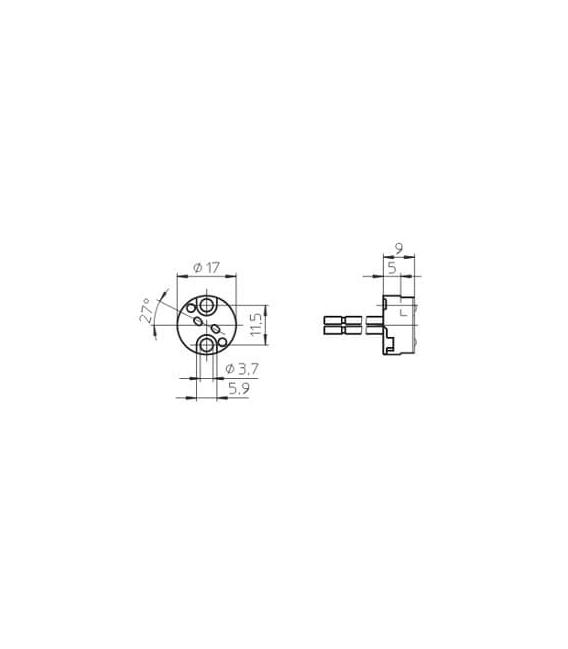

Vossloh Schwabe Lampholder Base G4 GX5.3 G6.35 Lead length 450mm

Springs: stainless steel, heat-resistant
Cover plate: Mica
Contacts: Ni
Lamp base: G4, GX5.3, G6.35
Material: Ceramic
Colour: Nature
Fixing: Fixing hole M3
Connection: With cable
Lead length [mm]: 450
Lead diameter [mm²]: 0,75
Conductor material: Cu nickel-coated
Lead quality: PTFE-insulation
Lead end: Scored (6 mm)
Lead rating Max.: 250
Insulation colour: Transparent
Nominal rating: 10/24
T-Marking: 300
Note:
This Lampholder, Base permits the use of lamps different caps. It is important to
ensure that under no circumstances a lamp with a smaller pin diameter is used
if a lamp with a larger pin diameter has already been used.
