111593 | Manufacturer: Osram | EAN: 4008321111593 | MPN: ET-PARROT-70
ET parrot 70 transformers efficient versatile power solution
Introducing the ET Parrot 70 Electronic Transformer - the ultimate power solution for low-voltage halogen lamps. With a wattage range of 20 to 70 W and a power factor of λ 0.95, this transformer ensures efficient and versatile performance. Its compact design and trailing-edge phase control dimming method make it perfect for effect lighting in living rooms, conference rooms, restaurants, and more. Experience long lamp life with protective operation throughout the entire partial-load range. Upgrade your lighting setup today!
More info
More info
Osram ET parrot 70 transformers efficient versatile power solution Transformer. Discover the ET Parrot 70 Transformer, an efficient and versatile power solution in our electronic transformers category. Experience unparalleled performance today
Lamp wattage 20…70 W
Line current 0.30 A
Power factor λ 0.95
Operating frequency 50 kHz
Nominal output voltage 11.9 / 12 V
Input voltage AC 220 - 240 V
Mains frequency 50 - 60 Hz
System wattage 74 W
Input voltage range 198 - 264 V
Max. ECG no. on circuit breaker 10 A (B) 37
Max. ECG no. on circuit breaker 16 A (B) 59
ECG efficiency 95%
Galvanic isolation primary/secondary 4 kV
Inrush current 0.45 A

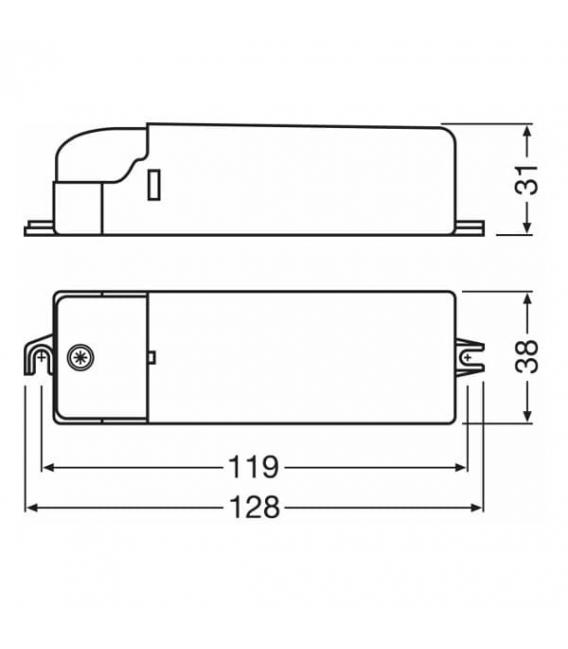

Length 128 mm
Width 38 mm
Height 31 mm
Mounting hole spacing, length 119 mm
Cable cross-section, input side 0.75 mm²
Cable cross-section, output side 0.75 mm²
Wire preparation length, input side 12 / 6 mm
Wire preparation length, output side 12 / 6 mm
Ambient temperature range 0…+45 °C
Maximum temperature at tc test point 70 °C
Design / version Compact
Dimming method Trailing-edge phase control
Overload protection Automatic reversible
Overheating protection Automatic reversible
Short-circuit protection Automatic reversible
Max. cable length to lamp/Led module 2.0m
Cable/wire types, input side H03VV-F 2 × 0.75 mm²
Cable/wire types, output side H03VV-F 2 × 0.75 mm²
Dimmable Yes
Dimming range 0…100%
No-load proof Yes
Suitable for fixtures with prot. class II
Approval marks - approval VDE / EAC
Standards Acc. to EN 61347/Acc. to EN 55015/Acc. to EN 61000 - 3-2/Acc. to EN 61547
Type of protection IP20
Benefits
• Trailing-edge phase dimming
• Very low power loss thanks to high efficacy
• Protective operation throughout the entire partial-load range for long lamp life
Areas of application
• Effect and accent lighting
• Living rooms
• Object lighting
• Conference rooms
• Restaurants
• Recessed and surface-mounted furniture luminaires
• Shop lighting
• Event rooms
| Explanation Dimmable | yes |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 70 |
| Explanation Protection mark - (IPXX) | 20 |
| Explanation Factory packed - (pieces) | 10 |
