927026 | Manufacturer: Osram | EAN: 4008321927026 | MPN: HTL-225
HTL 225W transformers premium choice in electronics
Product is out of production!
Product tags Product tags

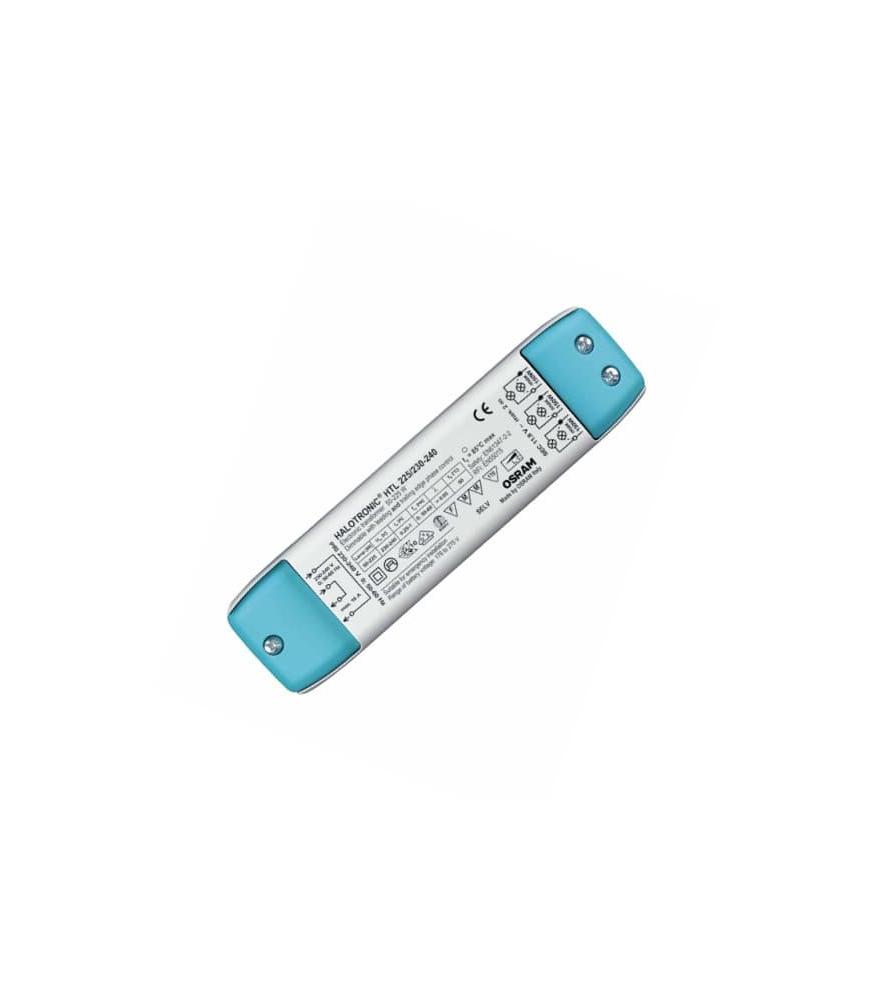

The HTL 225W Electronic Transformer is the perfect power solution for your lighting needs. With overload, overheating, and short-circuit protection, this transformer ensures safety and efficiency. Its dimmable feature allows you to create the perfect ambiance in any room. Suitable for various applications such as living rooms, restaurants, and event rooms, this transformer guarantees high efficacy and reliability. Upgrade your lighting system today with the HTL 225W Electronic Transformer!
More info
Osram HTL 225W transformers premium choice in electronics Transformer. Experience superior power efficiency with the HTL 225W Transformer, a standout in our Electronic Transformers category. Ideal for your high-demand electronics.
Lamp wattage 50…225 W
Line current 0.90 A
Input voltage DC 176…275 V
Power factor λ 0.95
Operating frequency 50 kHz
Nominal output voltage 11.6 / 11.7 V
Input voltage AC 220 - 240 V
Mains frequency 50 - 60 Hz
System wattage 230 W
Input voltage range 207…264 V
Max. ECG no. on circuit breaker 10 A (B) 11
Max. ECG no. on circuit breaker 16 A (B) 18
Galvanic isolation primary/secondary 4 kV
ECG efficiency 95%
Inrush current 1.5 A

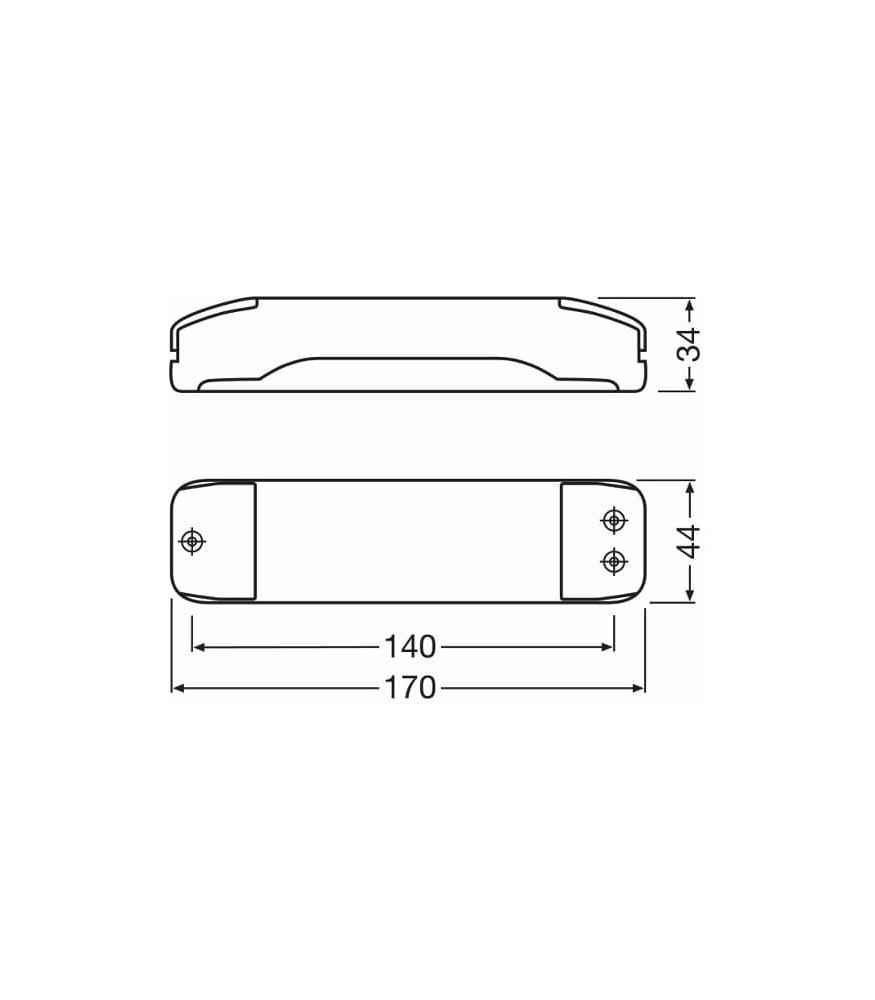

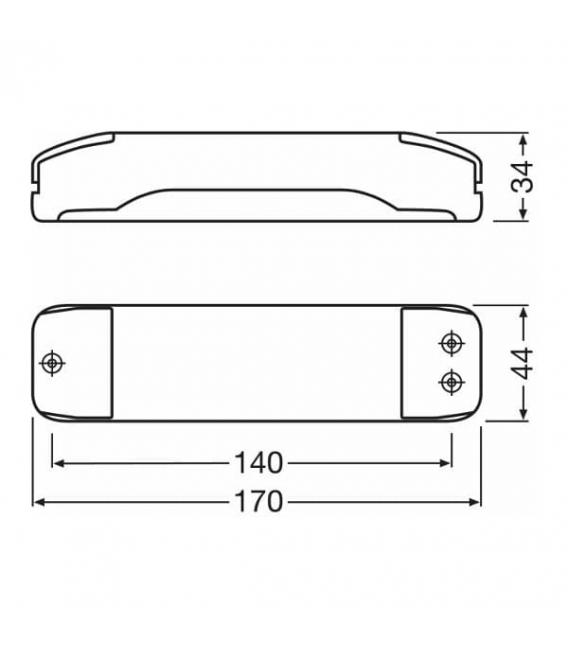

Length 170 mm
Width 44 mm
Height 34 mm
Cable cross-section, input side 2.5 mm²
Cable cross-section, output side 4 mm²
Wire preparation length, input side 14 / 8 mm
Wire preparation length, output side 14 / 8 mm
Mounting hole spacing, length 140 mm
Ambient temperature range –20…+50 °C
Maximum temperature at tc test point 80 °C
Design / version Long with cable clamp
Dimming method Trailing- or leading-edge phase control for inductive load dimmers
Overload protection Automatic switch off, reversible
Overheating protection Automatic switch off, reversible
Short-circuit protection Automatic switch-off, reversible
Max. cable length to lamp/Led module 2.0m
Cable/wire types, input side H03VV-F 2 × 0.50 / H03VV-F 2 × 0.75 / H03VVH2-F 2 × 0.75 / H05 VVH2-F 2 × 0.75 / H05 VV-F 2 × 2.5 / NYM-O 2 × 1.5 / NYM-J 3 × 1.5 mm²
Cable/wire types, output side H03VV-F 2 × 0.75 / H05 VVH2-F 2 × 0.75 / H05 VV-F 2 × 1.5 / H05 VV-F 2 × 2.5 / NYM-O 2 × 1.5 / NYM-J 3 × 1.5 / NYM-J 3 × 2.5 mm²
Dimmable Yes
Dimming range 0…100%
No-load proof Yes
Suitable for fixtures with prot. class II
Suitable for emergency lighting Yes
Approval marks - approval ENEC 10 / VDE / VDE-EMC / EAC
Standards Acc. to EN 61347/Acc. to EN 55015/Acc. to EN 61000 - 3-2/Acc. to EN 61547/Acc. to EN 61047
Type of protection IP20
Benefits
• Dimmable on the leading edge and trailing edge
• Very low power loss thanks to high efficacy
• Through-wiring possible on the primary side
• Large temperature range
• Protective operation throughout the entire partial-load range for long lamp life
• High efficiency and reliability
Areas of application
• Effect and accent lighting
• Living rooms
• Object lighting
• Conference rooms
• Restaurants
• Recessed and surface-mounted furniture luminaires
• Shop lighting
• Event rooms
| Explanation Dimmable | yes |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 225 |
| Explanation Protection mark - (IPXX) | 20 |
| Explanation Factory packed - (pieces) | 10 |
