HF 124 39 TL5 HO III 220V electronic ballasts

Discover the power of HF P 124 39 TL5 HO III 220V electronic ballast. Maximize efficiency and brightness with this advanced technology. Upgrade your lighting experience today

Application code III
Rated Lamptype TL5 HO
Rated Number of Lamps 1 piece
Rated Ballast-Lamp Power 24/39 W
Line Voltage 220 - 240 V
Line Frequency 50 - 60 Hz
Housing L 360 × 30 × 21
Energy Efficiency Index A2 BAT
Lifetime 90% surv.@Tcaselife 50000 h
Ignition Method Programmed Start
Automatic restart Yes
Ignition time 0.9 (max) s
Operating frequency 45 kHz
Mains voltage safety (AC) –10% /+10%
Mains voltage performance (AC) -8% /+6%
Inrush current Peak 18 (max) A
Inrush current Width 0.25ms
Earth leakage current 0.5 mA
Power losses gear 4 W
Constant wattage deviation -2% /+2%
Ballast Lumen Factor 1.03 -
PowerFactor 100% output power 0.99 -
Battery voltage lamp ignition 176 - 275 V
Battery voltage running lamps 186 - 275 V
Overvoltage protection 320 V 48 hr
Overvoltage protection 350 V 2 hr
Crestfactor 1.7 (max) -
Hum and Noise level < 30 dB(A)
Cable-Cap outputwires to earth 200 pF
Cable-Cap outputwires mutual 200 pF
Conn.type input terminals WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Conn.type output terminals WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Max. cable length Hot Wires 0.75m
Striplength 8.0-9 mm
Dual fixture Master/Slave Not applicable [Master/Slave oper. not applicable]
Wcs Input terminals 0.50 - 1 mm²
Wcs Output terminals 0.50 - 1 mm²
Rated Lamp Power on TL5 HO 24/39 W
System Power on TL5 HO 27.5/37.5 W
Lamp Power on TL5 HO 25/35 W
Power Loss on TL5 HO 2.5/2.5 W
T-case life 80 C
T-case maximum 80 (max) °C
T-ignition -25 (min), 60 (max) °C
T-ambient -25 (min), 60 (max) °C
T-storage -40 (min), 50 (max) °C
Bal lm Fac Emergency operation 0.7 -
Light output after 5 sec 50% of EBLF
Light output after 60 sec 100% of EBLF
Normal operating voltage (DC) 220 - 240 V
Batt volt guaranteed ignition 186 - 275 V
Batt volt guaranteed operation 176 - 275 V

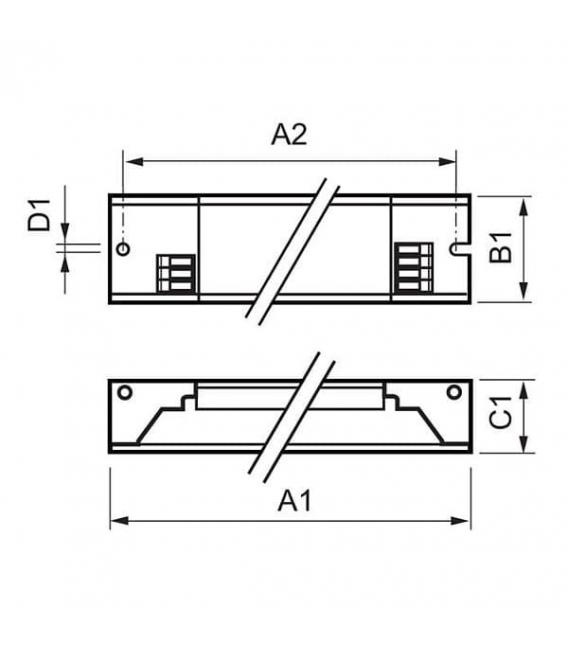

Length A1 360 mm
Fixing Hole Distance Length A2 350 mm
Width B1 30 mm
Height C1 21 mm
Fixing Hole Diameter D1 4.2 mm
Approval marks ENEC / VDE-EMV
CE marking Yes
Temperature marking 110 [Yes]
Emergency standard IEC 60598-2-22

Benefits
• An energy-efficient solution
• The programmed start enables the lamp to be switched on and off without reducing useful lamp life.
• DC emergency operation in line with IEC/EN 60598-2-22 luminaire norms
• Smart power ensures constant light, irrespective of mains-voltage fluctuations
• Suitable for luminaires in protection class I and, after testing, class II
• The universal connector Wago 251 offers the flexibility for horizontal-manual or push-in robot wiring or vertical ALF-robot wiring.

Features
• Robust design for 100000 hours lifetime at Ta=50˚C and over 100000 on/off switching operations on one lamp
• Programmed, flicker-free, pre-heated start ( < 0.5s) which allows the lamp to be switched on and off without reducing useful lamp life
• Active power factor correction to ensure constant light, irrespective of mains-voltage fluctuations
• The unit is protected against excessive mains voltage and incorrect connections.

Applications
• Used with movement-detection control systems like Philips OccuPlus
• Indoor applications, such as office buildings, hospitals, supermarkets, department stores, industrial premises and schools
• Class I outdoor applications, e.g. industrial premises and parking lots
