181596 | Manufacturer: Osram | EAN: 4008321181596 | MPN: QTP-DE-2-10-13

QTP 2x10 13W 220V electronic ballasts


21,35 € tax excl.


- +

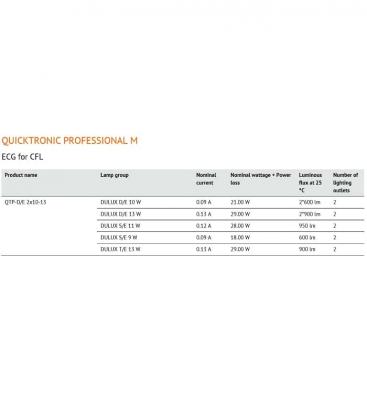

QUICKTRONIC PROFESSIONAL M ECG for CFL. High-performance electronic control gear designed for CFL lamps. Provides long lamp life, automatic restart after replacement, and perfect start with motion sensors. Suitable for emergency lighting systems, public buildings, sports halls, and factories. VDE/VDE EMC certified system. 220-240V supply voltage with optimum filament preheating and automatic shutdown of defective lamps at end of life (EoL T.2). Energy Efficiency Index EEI: A2. Safety compliant to EN 61347-2-3 standards.
More info

More info

Illuminate your space with the QTP d e 2x10 13W 220V electronic ballast. Efficiently power up lighting for a brighter ambiance.

Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
DC voltage 176 - 276 V
Operating frequency 44 kHz
Max. no. of ECGs on circuit breaker 10 A 16
Max. no. of ECGs on circuit breaker 16 A 28
Starting time 1s

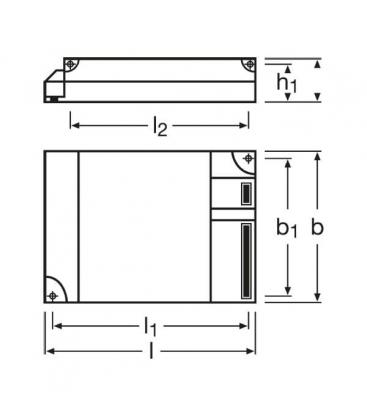

Length 123 mm
Width 79 mm
Height 33 mm
Mounting hole spacing, length 129.5 mm
Mounting hole spacing, width 67 mm
Ambient temperature range –20…+50 °C
Optional cable clamp, see chapter ECG mountings - cable clamp
Dimmable No
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC
EEI - Energy Label A2
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547

Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors
• Separate installations thanks to optional cable clamp for K2 and K3 casings
• VDE/VDE EMC certified system

Areas of application
Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Public buildings
• Sports halls and factories
• Suitable for luminaires of protection class I

Features
• Supply voltage: 220 - 240 V
• Line voltage: 198 - 264 V
• Line frequency: 0 Hz| 50 Hz | 60 Hz
• Lamp start with optimum filament preheating
• Energy Efficiency Index EEI: A2
• Automatic shutdown of defective lamps and at end of life (EoL T.2)
• Lamp operation: to EN 60929
• Safety: to EN 61347-2-3

Dimmableno
Voltage - (V)220
Factory packed - (pieces)20
