971234 | Manufacturer: Osram | EAN: 4008321971241 | MPN: QT-FIT5-14-35
QT FIT5 1x14 35W 220V quicktronic electronic ballasts
QT FIT5 1x14 35W 220V Quicktronic - The QUICKTRONIC FIT5 is an electronic control gear (ECG) designed for T5/16 mm lamps. With a wide input voltage range of AC 198-264 V and DC 185-264 V, it ensures reliable operation. This energy-efficient ECG offers benefits like long lamp life, automatic restart after lamp replacement, and perfect lamp start for motion sensor applications. It is suitable for various areas such as open-plan offices, public buildings, strip lighting, and can even be used in emergency lighting systems. Upgrade your existing setup with this VDE/VDE EMC certified system!
More info
Osram QT FIT5 1x14 35W 220V quicktronic electronic ballasts Ballast. Illuminate your space with the QT FIT5 1x14 35W 220V Quicktronic electronic ballast. Efficiently power lighting for a brighter environment.
Input voltage AC 198 - 264 V
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Input voltage DC 185-264 V
Operating frequency 40-50 kHz
Max. ECG no. on circuit breaker 10 A (B) 17
Max. ECG no. on circuit breaker 16 A (B) 28
Inrush current 24 A
Starting time 2s

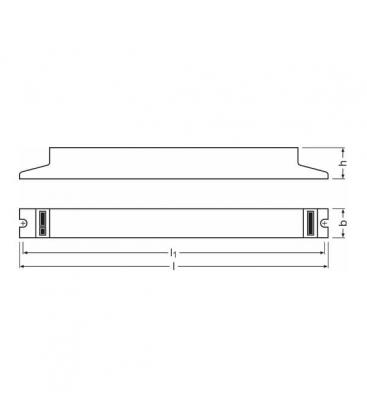

Length 280 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 270 mm
Cable cross-section, output side 0.5-1.5 mm²
Cable cross-section, input side 0.5-1.5 mm²
Ambient temperature range –15…+50 °C
Permitted rel. humidity during operation 5…85%
ECG lifetime 50000 h
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / ENEC 10 / VDE-EMC
EEI - Energy Label A2
Standards Acc. to EN 61547/IEC 61547/Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 61000 - 3-2/IEC 61000 - 3-2/Acc. to EN 55015: 2006 + A1: 2007 + A2: 2009
Protection class I
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors
• VDE/VDE EMC certified system
• Very high energy efficiency due to cut-off technology
Areas of application
• Open-plan offices, corridors and storage rooms
• Public buildings
• Strip lighting
• Suitable for emergency lighting (DC operation)
• Suitable for luminaires of protection class I
• Modernization of existing systems
| Explanation Dimmable | yes |
| Explanation Voltage - (V) | 220 |
| Explanation Lifetime - (h) | 50000 |
| Explanation Factory packed - (pieces) | 20 |
