100146 | Manufacturer: Osram | EAN: 4008321100146 | MPN: 64322
64322 EXL 30W 6A GY9 lamp for airfield illumination light bulbs
More info
Illuminate your airfield with the Lamp 64322 EXL 30W 6.6A GY9.5, a top-tier light bulb offering exceptional brightness and energy efficiency.
Nominal wattage 30 W
Lamp current 6.6 A
Nominal luminous flux 400 lm
Luminous flux 430 lm

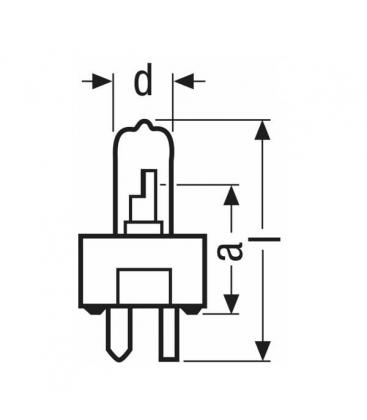

Diameter 13.5 mm
Length 44.5 mm
Light center length (LCL) 25.4 mm
Lifespan 1500 h
Base (standard designation) GY9.5
Burning position s90
ANSI code EXL
Areas of application
• Airfield lighting
Features
• Dimmable
• Infrared radiation output that provides light in the worst of conditions
SAFETY ADVICE
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (protective shields, grids, etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. There must also be a warning sign to indicate that the lamps give off high levels of heat. Detailed information is available on request.
