Master TL5 24W 827 ho High Output G5

System Description High Output
Cap-Base G5
Cap-Base Information Green Plate
Bulb T5 [16 mm]
Life to 10% fail Preheat EL,3h 19000h
Life to 50% fail Preheat EL,3h 24000h

Color Code 827 [CCT of 2700K]
Color Rendering Index 85 Ra8
Color Designation (text) Incandescent White
Color Temperature 2700K
Luminous Flux EL 25 °C, Rated 1750 lm
Luminous Flux EL 25 °C, Nominal 1750 lm
Luminous Flux Lamp EL 35 °C 1950 lm
Lum Efficacy Rated HF 25 °C 78 lm/W
Lum Efficacy Rated HF 35 °C 87 lm/W
LLMF HF 2000h Rated 96%
Design Temperature 35 C
Chromaticity Coordinate X 463 -
Chromaticity Coordinate Y 420 -

Lamp Wattage 24W
Lamp Wattage EL 25 °C, Rated 22.5W
Lamp Wattage EL 25 °C, Nominal 24W
Lamp Wattage EL 35 °C 22.5W
Lamp Voltage EL 25 °C 77V
Lamp Voltage EL 35 °C 75V
Lamp Current EL 25 °C 0.295A
Lamp Current EL 35 °C 0.300A
Dimmable Yes

Energy Efficiency Label (EEL)A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000h 25 kWh

Calibration Current 0.300A
HF Generator Rated Voltage 150V
Resistor 250 ohm

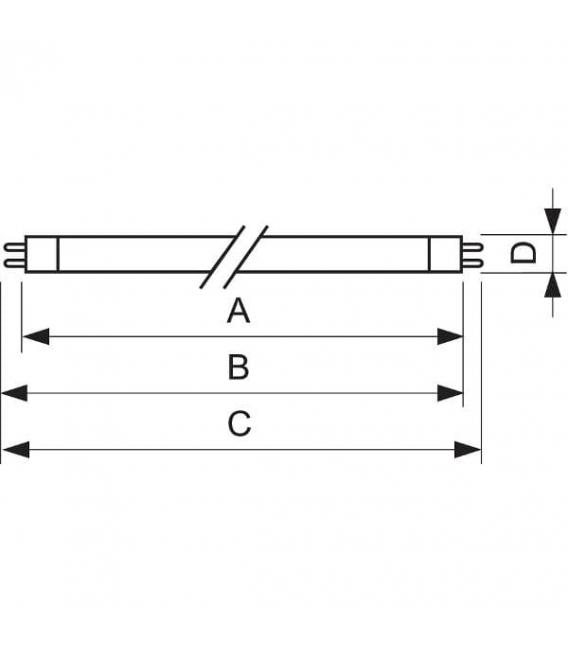

Base Face to Base Face A 549.0 (max) mm
Insertion Length B 553.7 (min), 556.1 (max) mm
Overall Length C 563.2 (max) mm
Diameter D 17 (max) mm

This TL5 lamp (tube diameter 16 mm) offers high light output. The TL5 HO lamp is optimized for installations requiring high light output and offers excellent lumen maintenance and color rendering. Application areas vary from offices and industry to schools and retail environments.

Features
-40% thinner than TL-D lamps
-Designed for high llight output and system miniaturization
-Highly efficient 3-band fluorescent coating in combination with precoating
-Specifically designed for operation with electronic gear and well-suited for dimming
-Maximum light output reached at approximately 35 °C in free-burning position if an electronic driver with cut-off feature is used
-Can be ignited from -15 to +50 °C

Applications
-The combination of a compact lamp and high lumen package of the MASTER TL5 HO offers exciting opportunities for architectural lighting and customized solutions
-Offers economic solutions with high-ceiling lighting in shops, industry and department stores
-The high luminous flux gives optimal results in aesthetic pendants and furniture-mounted luminaires in offices, workshops, restaurants and reception areas
