QTP dL 2x55W 230 240V GII Quicktronic professional

Input voltage AC 198…264V
Nominal voltage 220…240V
Mains frequency 50…60Hz
Input voltage DC 176…276V
Operating frequency 40…50 kHz
Max. ECG no. on circuit breaker 10A (B) 8
Max. ECG no. on circuit breaker 16A (B) 13
Inrush current 28A

Starting time 1s

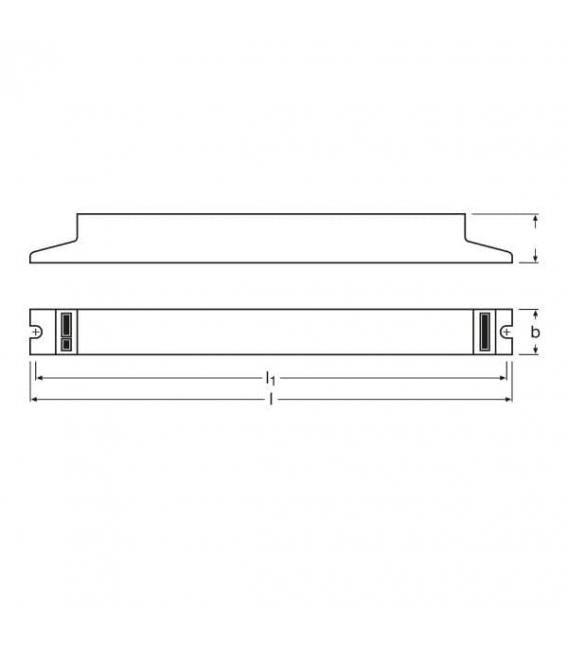

Length 360 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 350 mm

Ambient temperature range -20…+50 °C

ECG lifetime 50000h

Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2

Approval marks – approval VDE / VDE-EMC / ENEC 10 / GOST / RCM
EEI – Energy Label A2
Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015: 2006 + A1: 2007/Acc. to EN 61000-3-2/Acc. to EN 61547
Protection class I
Type of protection IP20

Product benefits
-Long lamp life
-No adverse effect from frequent on/off switching
-Automatic restart after lamp replacement
-Perfect lamp start for applications with motion sensors
-VDE/VDE EMC certified system
-Very high energy efficiency due to cut-off technology

Areas of application
-Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
-Open-plan offices, corridors and storage rooms
-Public buildings
-Suitable for luminaires of protection classes I and II
