Vossloh Schwabe Okov G13 Push through 109330

G13 push-through lampholders for lamps T8 and T12

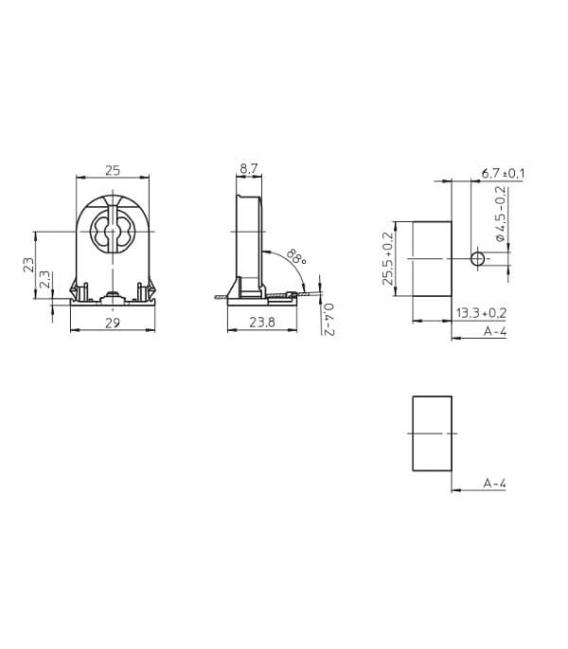

Lamp axis: 23 mm
Casing: PC, white, frontplate: PBT GF, white
T140, nominal rating: 2/500
Push-in terminals: 0.5–1mm²
Lateral fixing clips for wall thickness 0.4–2 mm

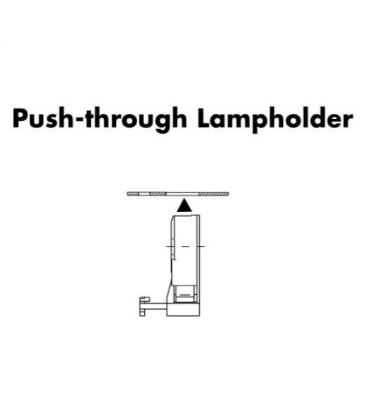

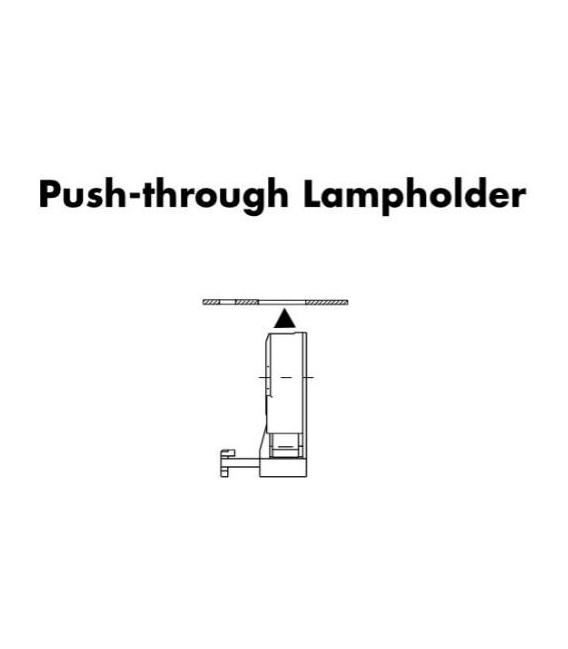

Push-through lampholders
Push-through lampholders are inserted from below through a cut-out in the luminaire casing and are secured by lateral catches. This type of lampholder is frequently used in luminaires on which the lampholder remains visible from the outside, e.g. in so-called strip lighting. The electrical leads are laid beneath the sheet metal level. Luminaire directive EN 60598-1 Para. 8.2 must be observed with regard to the luminaire.
