Osram PTO 35/220 240

Lamp wattage 39W
Line current 0.20A
Ignition voltage 4.5 kVp
Operating frequency 0.165 kHz
System wattage 43W
ECG efficiency 90%
Input voltage 220…240V
Voltage range 198…264V
Mains frequency 50…60Hz
Power factor λ 0.95
Inrush current 30A
Max. no. of ECGs on circuit breaker 10A 15
Max. no. of ECGs on circuit breaker 16A 26
Max. no. of ECGs on 16A MCB with EBN-OS 65
Protective conductor current 0.1 mA
U-OUT 250
Max. working voltage between LH and LL 250V
Max. working voltage betw. LL/LH and earth 250V
Max. capacitance of wire ECG/lamp 120 pF
Surge capability (L-N) 3 kV
Surge capability (L/N-Ground) 4 kV

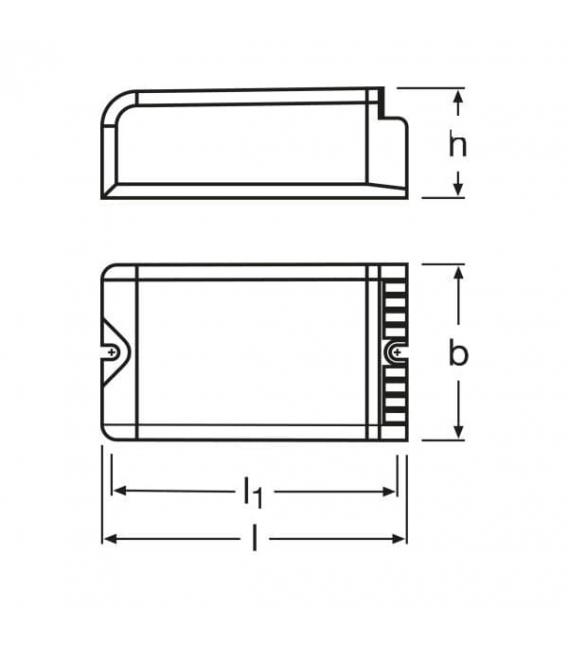

Length 133 mm
Width 77 mm
Height 48 mm
Mounting hole spacing, length 123 mm
Cable cross-section, input side 0.5…2.5mm²
Cable cross-section, output side 0.5…2.5mm²
Wire preparation length, input side 10…11 mm
Wire preparation length, output side 10…11 mm

Casing material Plastic

Ambient temperature range -25…+60 °C
Maximum temperature at tc test point 75 °C

ECG lifetime 60000h

Required IP rating of luminaire ≥ 54
Design / version ECG outdoor
Encapsulated Yes
System guarantee level 3c

Maximum wiring length ECG/lamp 1.5m
Overheating protection Power reduction and switch off at T > 75 °C at the tc point
ECG reset time > 0.5s
Dimmable No
Restriction on ignition time 20 min
Suitable for fixtures with prot. class I / II
Lightning stroke protection With connected equipotentiality-terminal 10 surges with 10 kV acc. to IEC 61000-4-5

Approval marks – approval ENEC 10 / VDE / VDE-EMC / GOST / C-Tick
Type of protection IP20
EEI – Energy Label A2
Standards acc. to EN 61347-2-12/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547

Product benefits
-Energy savings up to 30% (compared to CCG operation) thanks to 3DIM (except PTo 35)
-High surge protection: up to 3 kV (L-N) / 4 kV (L/N-PE)
-Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
-Excellent thermal behavior for very high limit temperatures tc and ta

Areas of application
-Suitable for luminaires of protection classes I and II
-Suitable for outdoor applications in fixtures with IP > 54
