912848 | Manufacturer: Osram | EAN: 4008321912848 | MPN: HTT-150-211
HTT 150 211W 220V R7s UV lamp reprography
Product tags Product tags
The UV-A Reprography Lamp Supratec HTT 150 211W 220V R7s is a high-performance halogen metal vapor lamp designed for industrial use. It emits strong radiation in the UV-B (280-315nm) and UV-A (315-380nm) ranges, making it ideal for curing large areas of plastic, drying paint and varnishes, glue curing, and more. Please handle with caution as it emits intense UV radiation that can cause sunburn and conjunctivitis.
More info
Experience superior quality with the UV-A Lamp HTT 150 211W 220V R7s, a standout in our range of reprography lamps. Perfect for detailed work and high precision.
Nominal wattage 150 W
Nominal voltage 230 V
Lamp voltage 230 V
Construction voltage 230 V
Nominal current 1.5 A
Radiated power 315…400 nm (UVA) 22 W
Radiated power 280…315 nm (UVB) 6 W

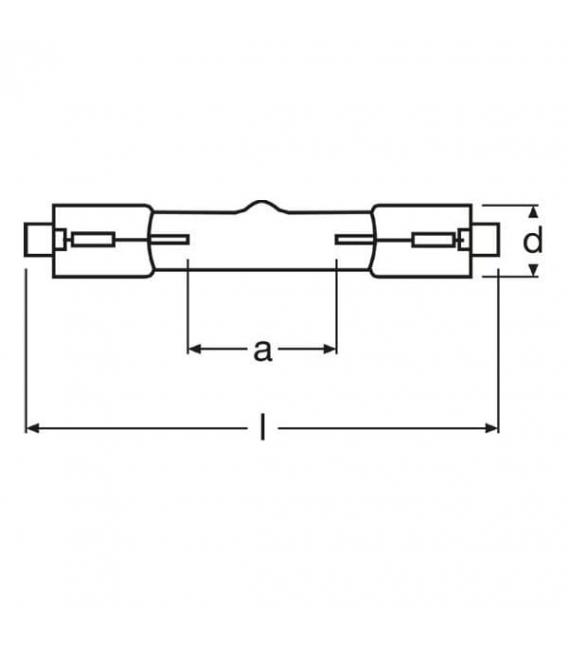

Diameter 10 mm
Length 57.6 mm
Light center length (LCL) 10 mm
Arc length 10 mm
Lifespan 1000 h
Base (standard designation) R7s
Burning position p20/s70
Applications
• Curing large areas of plastic
• Drying paint and varnishes
• Glue curing
• Exposure of diazo film material and print masters
• Artificial material aging
• Fluorescence excitation (with black glass filters)
• Curing large areas of plastic
Features
• SUPRATEC UV high pressure lamps for technical applications
ATTENTION
SUPRATEC lamps emit UV radiation of high intensity which can cause sunburn and conjunctivitis. Skin or eyes must not be exposed to direct or reflected unfiltered radiation! Operate in closed fixtures only.
| Explanation It needs ballast | yes |
| Explanation Lamp holder, lamp socket | R7s |
| Explanation Voltage - (V) | 220 |
| Explanation Wattage - (W) | 150 |
| Explanation Energy consumption - (kWh / 1000h) | 150 |
| Explanation Lifetime - (h) | 1000 |
| Explanation Factory packed - (pieces) | 25 |
