Offset print HPA UV 1000 20 premium lamp reprography

Cap-Base C10.5L
Cap-Base Information Cable 100 mmT
Operating Position p10
Main Application Reprography
Life to 10% failures EM 750 hr
Lamp Wattage 1100 W
Lamp Current 10.5 A
Dimmable No
Pinch Temperature 350 (max) °C
Bulb Temperature 750 (min), 950 (max) °C

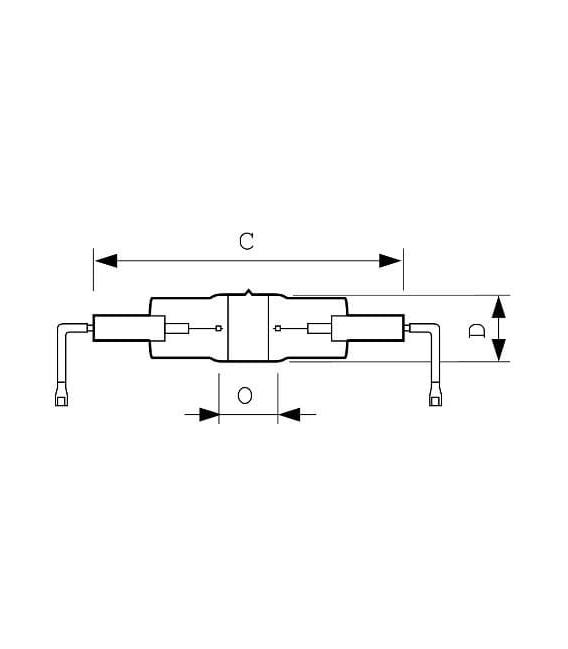

Overall Length C 131 (max) mm
Diameter D 28 (max) mm
Arc Length O 21 (max) mm
Optimized for the UVA bandwidth (315 to 380 nm), HPA-R UVA lamps are ideal for a wide range of reprography and photochemical process applications. Their high radiant efficiency and high arc-stability ensure cost-efficient and reliable usage. They provide the ideal light source for contact copying of images from transparent film to UV-sensitive carriers such as film, offset plates, printed circuit boards and microfilms. These lamps are also perfectly suitable of photochemical process applications such as the UV-curing of glues, resins and pigmented lacquers.

Features
• Spectrum is optimized for UV-A radiation
• No ozone production

Applications
• Contact copying of images from transparent film to UV sensitive carriers like film, offset plates, printed circuit boards or micro films
• UV curing of glues, resins and pigmented lacquers
