Master TL5 22W 830 2GX13 energy efficient T9 circular fluorescent

Cap-Base 2GX13
Bulb C-T5 [C-T 16 mm]
Life to 10% fail Preheat EL,3h 8000 h
Life to 50% fail Preheat EL,3h 12000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 85 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EL 25 °C, Rated 1800 lm
Luminous Flux EL 25 °C, Nominal 1800 lm
Luminous Efficacy Rated HF 25 °C 82 lm/W
LLMF HF 2000 h Rated 91%
LLMF HF 4000 h Rated 87%
Design Temperature 35 C
Chromaticity Coordinate X 440 -
Chromaticity Coordinate Y 403 -
Lamp Wattage 22 W
Lamp Wattage EL 25 °C, Rated 22.3 W
Lamp Wattage EL 25 °C, Nominal 22 W
Lamp Voltage EL 25 °C 75 V
Lamp Current EL 25 °C 0.300 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 2.5 mg
Energy consumption kWh/1000 h 25 kWh
Calibration Current 0.300 A
HF Generator Rated Voltage 150 V
Resistor 250 Ω

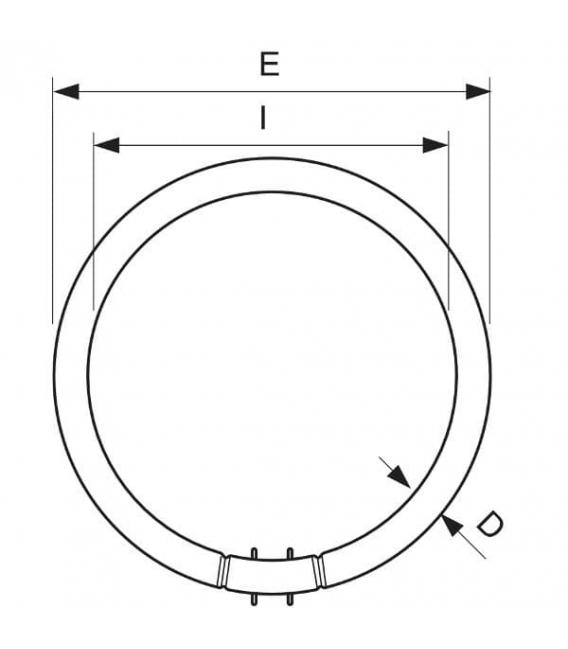

Diameter D 14 (min), 18 (max) mm
Overall Width E 220 (min), 230 (max) mm
Inner Width I 187 (min), 197 (max) mm
This circular TL5 lamp (tube diameter 16 mm) offers extended design possibilities. The slim tube allows the creation of extremely flat luminaires and enables omni-directional light distribution. It is suitable for a wide range of professional and semi-professional applications, and is ideal for use in shops, offices and public areas with unconventional layouts.

Features
• Perfect circular shape
• Highly efficient 3-band fluorescent coating
• Specifically designed for operation with electronic gear
• Can be ignited from –15 to +50 °C
• Amalgam technology

Applications
• Brings the benefits of TL5 lighting to an even wider range of attractive applications
• Suitable for a wide range of professional and semi-professional applications

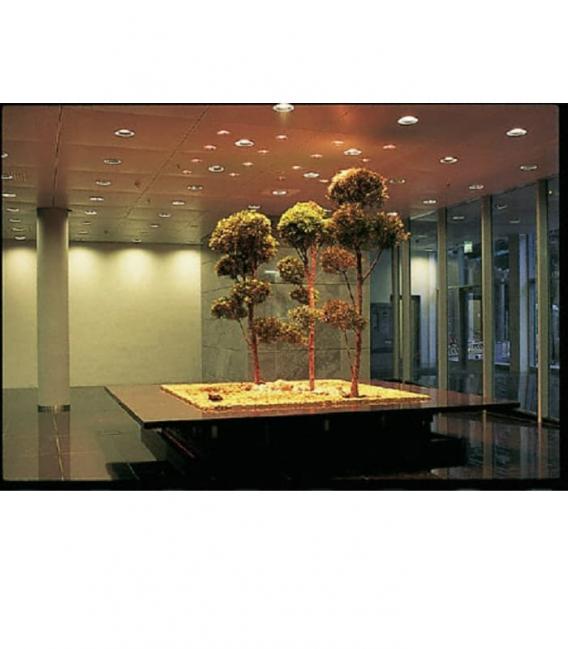

• Ideal for use in shops, offices and public areas with non-traditional lay-outs
• Amalgam lamps are limited suitable for dimming applications
