528564 | Manufacturer: Osram | EAN: 4050300528564 | MPN: FC-55-865
FC 55W 865 2GX13 daylight bulb T9 circular fluorescent lamps
Product is out of production!
The FC 55W 865 2GX13 is an extremely economical and high-quality lighting solution. With a rated luminous flux of 3800 lm and excellent uniform illumination, it provides excellent light quality with no shadows. Suitable for various applications such as public buildings, offices, restaurants, industry, shops, supermarkets, department stores, and hotels. This product is designed exclusively for operation on electronic control gears. Upgrade your lighting experience with the FC 55W 865 2GX13!
More info
Osram FC 55W 865 2GX13 daylight bulb T9 circular fluorescent lamps. Upgrade your lighting with the FC 55W 865 2GX13 bulb. Experience bright, energy-efficient illumination for any space.
Nominal wattage 55 W
Rated lamp efficacy (standard condition) 69 lm/W
Rated wattage 55 W
Color rendering index Ra80…89
Rated luminous flux 3800 lm
Luminous flux at 25 °C 3990 lm
Light color 865
Color temperature 6500 K
Nominal luminous flux 3990 lm
Light color as per EN 12464-1 LUMILUX Cool Daylight
Rated LLMF at 2000 h 0.85

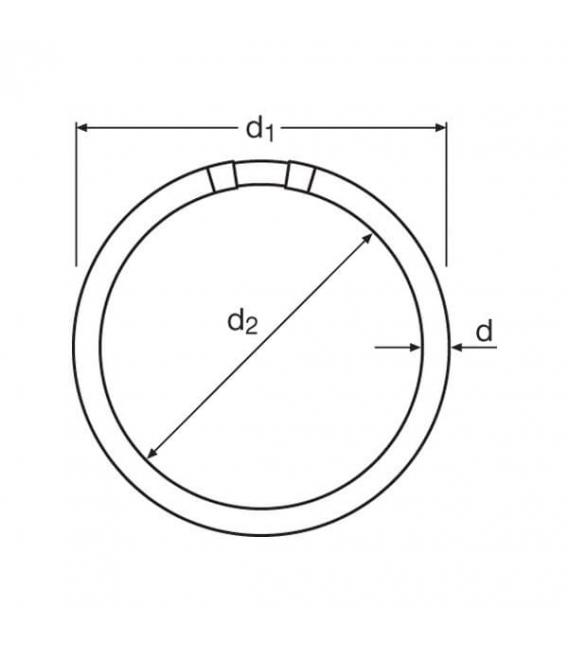

Tube diameter 16 mm
Length 305 mm
Length with base excl. base pins/connection 300 mm
Diameter 16 mm
Maximum diameter 16 mm
Rated ambient temp.w.max.luminous flux 30 °C
Service life 8000 h
Lifespan 12000 h
Operation mode LLMF/LSF HF
Rated lamp life time 12000 h
Nominal lamp life time 12000 h
Base (standard designation) 2GX13
Lamp mercury content 3.7 mg
Appropriate disposal acc. to WEEE Yes
Product remark Suitable for ECG operation only
Suitable for indoor Yes
Energy efficiency class A
Energy consumption 61 kWh/1000 h
Benefits
• Extremely economical
• Good quality of light
• Excellent luminous flux
• Excellent uniform illumination with no shadows
• Good average life (with Osram ECG)
Applications

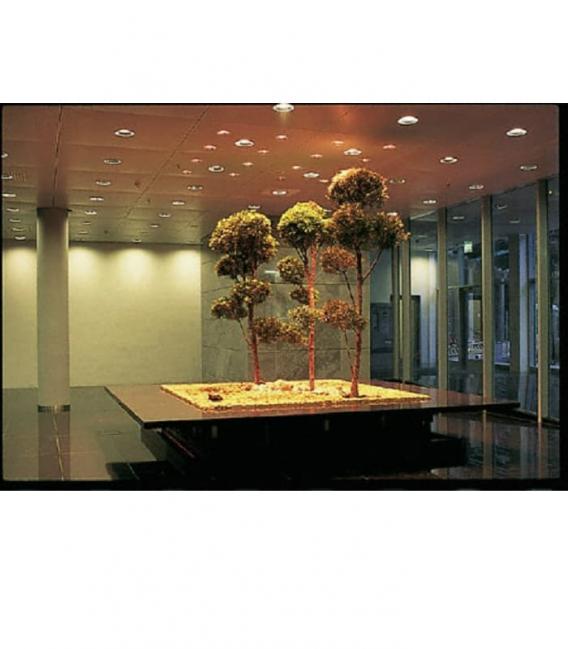

• Public buildings
• Offices
• Restaurants
• Industry
• Shops
• Supermarkets and department stores
• Hotels
Equipment / Accessories
• Exclusively for operation on electronic control gears
| Explanation It needs ballast | yes |
| Explanation Dimmable | yes, with DIMM ECG |
| Explanation Energy efficiency class | A |
| Explanation Lamp holder, lamp socket | 2GX13 |
| Explanation Wattage - (W) | 55 |
| Explanation Luminous flux - (lm) | 3800 |
| Explanation Luminous efficacy - (lm / W) | 69 |
| Explanation Color temperature - (K) | 6500 |
| Explanation Light color code | 865 |
| Explanation Color rendering - (CRI) | 85 |
| Explanation Energy consumption - (kWh / 1000h) | 55 |
| Explanation Lifetime - (h) | 12000 |
| Explanation Factory packed - (pieces) | 12 |
