T9 circular fluorescent lamps

FC 22W 865 2GX13

528441 | Manufacturer: Osram | EAN: 4050300528441 | MPN: FC-22-865

Circular fluorescent lamps 16 mm. Extremely economical, good quality of light, excellent luminous flux, excellent uniform illumination with no shadows.


16,64 €tax excl.

Price for 1 piece, excluding shipping costs!
Condition: New product
Factory Box - pieces (pcs): 12

-+

By buying this product you can collect up to 3 loyalty points. Your cart will total 3 points, that can be converted into a voucher of 0,30 €.

More info

Nominal wattage 22.30W
Rated lamp efficacy (standard condition) 77 lm/W
Rated wattage 22.30W

Color rendering index Ra80…89
Rated luminous flux 1710 lm
Luminous flux at 25 °C 1800 lm
Light color 865
Color temperature 6500K
Nominal luminous flux 1800 lm
Light color as per EN 12464-1 LUMILUX Cool Daylight
Rated LLMF at 2000h 0.85

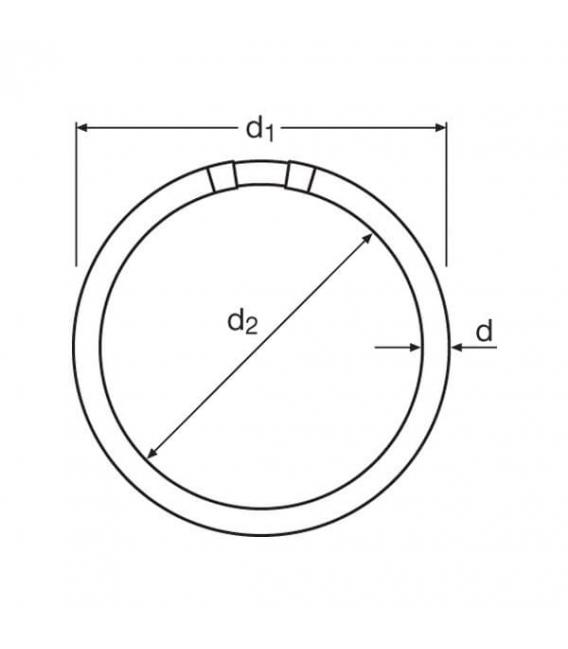

Tube diameter 16 mm
Length 230 mm
Length with base excl. base pins/connection 225 mm
Diameter 16 mm
Maximum diameter 16 mm

Rated ambient temp.w.max.luminous flux 30 °C

Service life 8000h
Lifespan 12000h
Operation mode LLMF/LSF HF
Rated lamp life time 12000h
Nominal lamp life time 12000h

Base (standard designation) 2GX13
Lamp mercury content 3.7 mg
Appropriate disposal acc. to WEEE Yes
Product remark Suitable for ECG operation only

Suitable for indoor Yes

Energy efficiency classA
Energy consumption 25 kWh/1000h

Product benefits
-Extremely economical
-Good quality of light
-Excellent luminous flux
-Excellent uniform illumination with no shadows
-Good average life (with Osram ECG)

Areas of application
-Public buildings
-Offices
-Restaurants
-Industry
-Shops
-Supermarkets and department stores
-Hotels

Equipment / Accessories
-Exclusively for operation on electronic control gears

Data sheet

Data sheet: T9 circular fluorescent lamps FC 22W 865 2GX13

It needs ballastYes
DimmableYES, with DIMM ECG
Energy Efficiency ClassA
Base/Sockel2GX13
Wattage - Watt (W)22
Luminous flux - Lumen (lm)1800
Luminous Efficacy Lamp - (lm / W)82
Light color temperature - Kelvin (K)6500
Light color code865
Color rendering index - CRI85
Energy consumption - (kWh / 1000h)22
Lifetime - hours (h)12000
Factory Box - pieces (pcs)12
Download

Download: T9 circular fluorescent lamps, FC 22W 865 2GX13
