T9 circular fluorescent lamps
FC 40W 830 2GX13
528540 | Manufacturer: Osram | EAN: 4050300528540 | MPN: FC-40-830
Circular fluorescent lamps 16 mm. Extremely economical, good quality of light, excellent luminous flux, excellent uniform illumination with no shadows.
By buying this product you can collect up to 3 loyalty points. Your cart will total 3 points, that can be converted into a voucher of 0,30 €.
Nominal wattage 39.90W
Rated lamp efficacy (standard condition) 85 lm/W
Rated wattage 39.90W
Color rendering index Ra80…89
Rated luminous flux 3400 lm
Luminous flux at 25 °C 3400 lm
Light color 830
Color temperature 3000K
Nominal luminous flux 3400 lm
Light color as per EN 12464-1 LUMILUX Warm White
Rated LLMF at 2000h 0.85

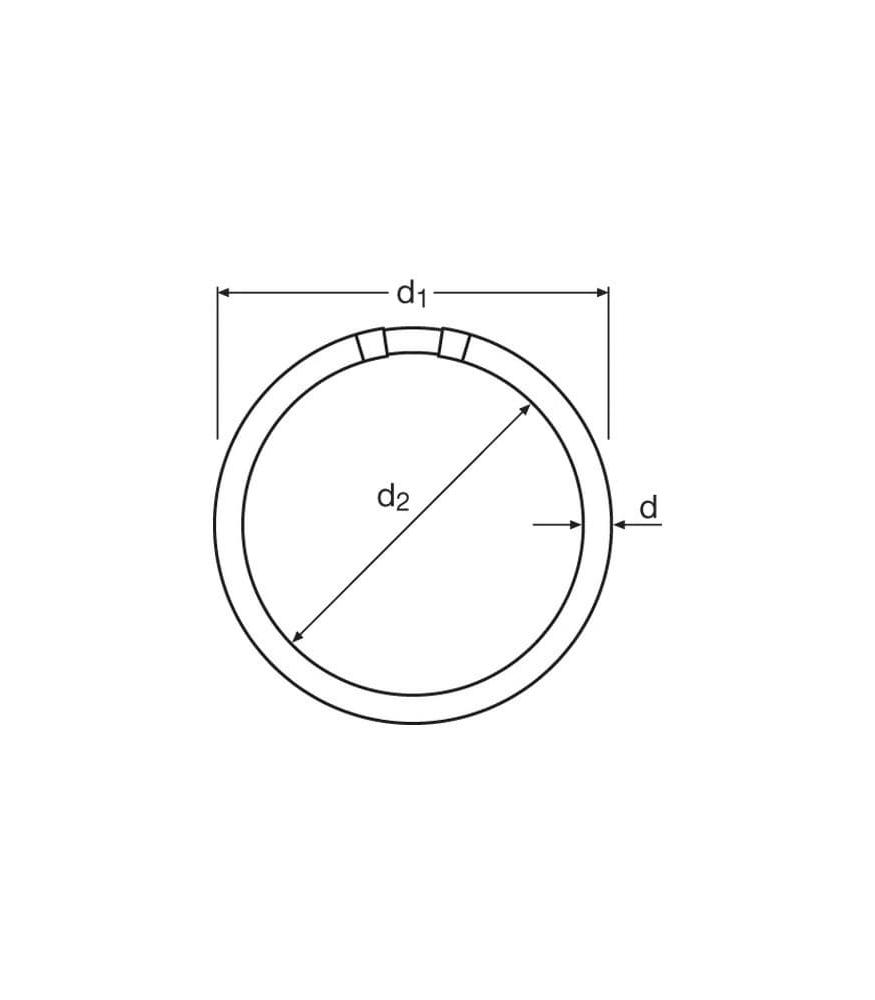

Tube diameter 16 mm
Length 305 mm
Length with base excl. base pins/connection 300 mm
Diameter 16 mm
Maximum diameter 16 mm
Rated ambient temp.w.max.luminous flux 30 °C
Service life 8000h
Lifespan 12000h
Operation mode LLMF/LSF HF
Rated lamp life time 12000h
Nominal lamp life time 12000h
Base (standard designation) 2GX13
Lamp mercury content 3.7 mg
Appropriate disposal acc. to WEEE Yes
Product remark Suitable for ECG operation only
Suitable for indoor Yes
Energy efficiency class A+
Energy consumption 44 kWh/1000h
Product benefits
-Extremely economical
-Good quality of light
-Excellent luminous flux
-Excellent uniform illumination with no shadows
-Good average life (with Osram ECG)
Areas of application
-Public buildings
-Offices
-Restaurants
-Industry
-Shops
-Supermarkets and department stores
-Hotels
Equipment / Accessories
-Exclusively for operation on electronic control gears
Data sheet: T9 circular fluorescent lamps FC 40W 830 2GX13
| It needs ballast | Yes |
| Dimmable | YES, with DIMM ECG |
| Energy Efficiency Class | A+ |
| Base/Sockel | 2GX13 |
| Wattage - Watt (W) | 40 |
| Luminous flux - Lumen (lm) | 3400 |
| Luminous Efficacy Lamp - (lm / W) | 85 |
| Light color temperature - Kelvin (K) | 3000 |
| Light color code | 830 |
| Color rendering index - CRI | 85 |
| Energy consumption - (kWh / 1000h) | 40 |
| Lifetime - hours (h) | 12000 |
| Factory Box - pieces (pcs) | 12 |
