528465 | Manufacturer: Osram | EAN: 4050300528465 | MPN: FC-22-840
FC 22W 840 2GX13en your space with efficient T9 circular fluorescent
Product is out of production!
The FC 22W 840 2GX13 is an extremely economical and efficient lighting solution. With a rated luminous flux of 1800 lm and a color temperature of 4000 K, it provides excellent uniform illumination with no shadows. Suitable for indoor use, this lamp is perfect for public buildings, offices, restaurants, industry, shops, supermarkets, department stores, and hotels. Designed exclusively for operation on electronic control gears.
More info
Osram FC 22W 840 2GX13en your space with efficient T9 circular fluorescent. Upgrade your lighting with the FC 22W 840 2GX13 bulb. Enjoy bright, energy-efficient illumination for any space. Shop now and transform home
Nominal wattage 22.30 W
Rated lamp efficacy (standard condition) 81 lm/W
Rated wattage 22.30 W
Color rendering index Ra80…89
Rated luminous flux 1800 lm
Luminous flux at 25 °C 1900 lm
Light color 840
Color temperature 4000 K
Nominal luminous flux 1900 lm
Light color as per EN 12464-1 LUMILUX Cool White
Rated LLMF at 2000 h 0.85

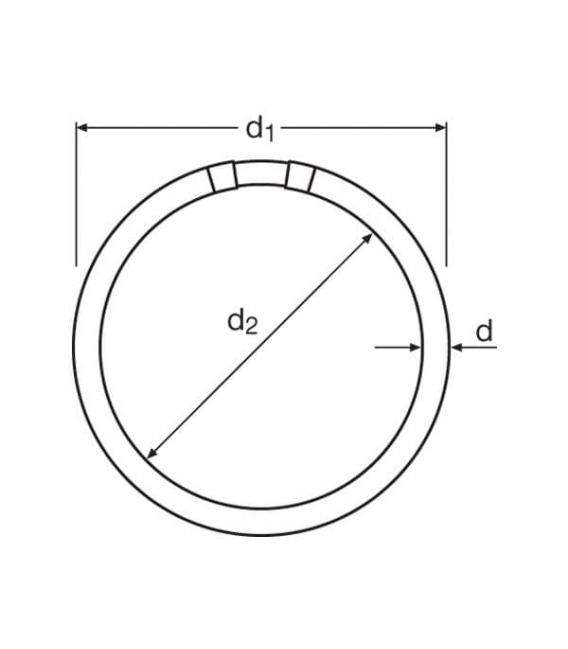

Tube diameter 16 mm
Length 230 mm
Length with base excl. base pins/connection 225 mm
Diameter 16 mm
Maximum diameter 16 mm
Rated ambient temp.w.max.luminous flux 30 °C
Service life 8000 h
Lifespan 12000 h
Operation mode LLMF/LSF HF
Rated lamp life time 12000 h
Nominal lamp life time 12000 h
Base (standard designation) 2GX13
Lamp mercury content 3.7 mg
Appropriate disposal acc. to WEEE Yes
Product remark Suitable for ECG operation only
Suitable for indoor Yes
Energy efficiency class A
Energy consumption 25 kWh/1000 h
Benefits
• Extremely economical
• Good quality of light
• Excellent luminous flux
• Excellent uniform illumination with no shadows
• Good average life (with Osram ECG)

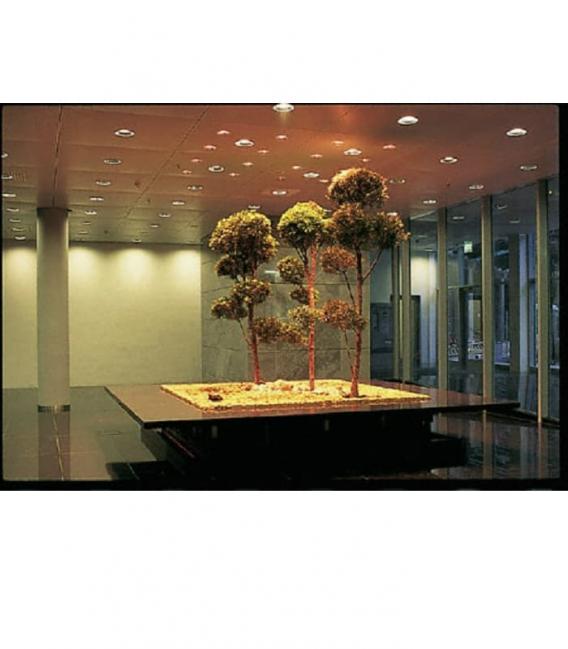

Applications
• Public buildings
• Offices
• Restaurants
• Industry
• Shops
• Supermarkets and department stores
• Hotels
Equipment / Accessories
• Exclusively for operation on electronic control gears
| Explanation It needs ballast | yes |
| Explanation Dimmable | yes, with DIMM ECG |
| Explanation Energy efficiency class | A |
| Explanation Lamp holder, lamp socket | 2GX13 |
| Explanation Wattage - (W) | 22 |
| Explanation Luminous flux - (lm) | 1900 |
| Explanation Luminous efficacy - (lm / W) | 86 |
| Explanation Color temperature - (K) | 4000 |
| Explanation Light color code | 840 |
| Explanation Color rendering - (CRI) | 85 |
| Explanation Energy consumption - (kWh / 1000h) | 22 |
| Explanation Lifetime - (h) | 12000 |
| Explanation Factory packed - (pieces) | 12 |
