XBO 1000W HSC OFR SK27 50 SFcX27 lamps specialty and bulbs

Illuminate your space with the Lamp XBO 1000W HSC OFR SK27 50 SFcX27 8, a standout in our Specialty Lamps and Bulbs category. Experience superior brightness

Nominal wattage 1000 W
Lamp voltage 19 V
Nominal current 20 A
Lamp current 50 A
Current control range 30…55 A
Nominal luminous flux 32000 lm

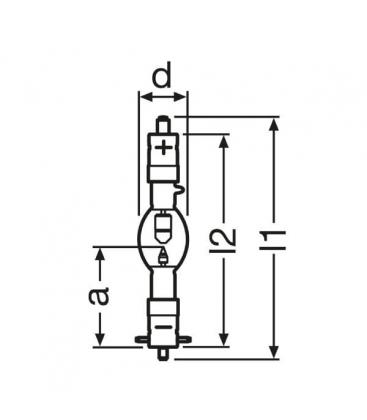

Diameter 40 mm
Length 236 mm
Length with base excl. base pins/connection 220 mm
Light center length (LCL) 95 mm
Electrode gap cold 3.6 mm
Max. permitted ambient temp. pinch point 230 °C
Lifespan 2000 h
Base anode (standard designation) SK27/50
Base cathode (standard designation) SFcX27-8
Product remark OFR = Ozone-free version/H = Suitable for horizontal burning position/S = Short/C= Base with cable
Cooling Forced
Burning position s20/p20

Benefits
• Short arc with very high luminance for brighter screen illumination
• Constant color temperature of 6000 K throughout the entire lamp lifetime
• Easy to maintain
• High arc stability
• Instant light on screen thanks to hot restart function
• Wide dimming range

Areas of application
• Classic 35 mm film projection
• Digital film and video projection
• Architectural and effect light (“Light Finger”)
• Sunlight simulation

Features
• Color temperature: approx. 6000 K (Daylight)
• Wattage: 1200…8000 W
• Very good color rendering index: Ra > 96

General safety informations
