082626 | Manufacturer: Osram | EAN: 4008321082626 | MPN: XBO-450-2
XBO 450W OFR SK19 lamps specialty and bulbs
Product tags Product tags
More info
Osram XBO 450W OFR SK19 lamps specialty and bulbs 2 Lamp. Illuminate your space with the Lamp XBO 450W 2 OFR SK19, a standout in our Specialty Lamps and Bulbs category. Experience superior brightness energy efficiency today
Nominal wattage 450 W
Lamp voltage 17 V
Nominal current 18 A
Lamp current 25 A
Current control range 17…30 A
Nominal luminous flux 13000 lm

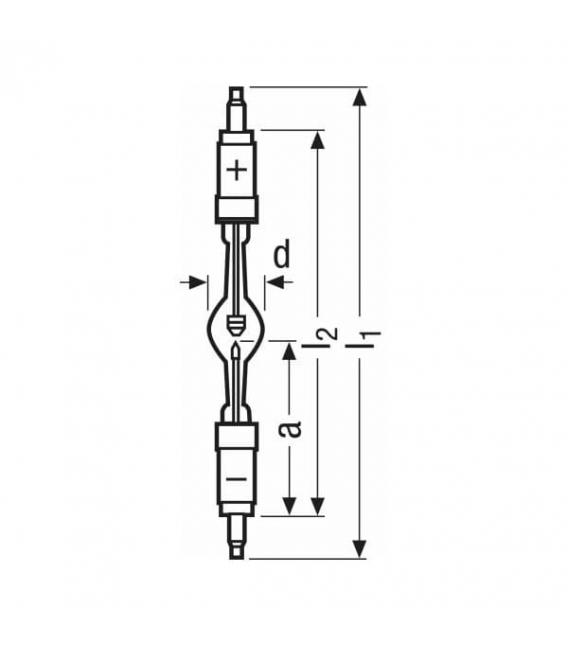

Diameter 29 mm
Length 177 mm
Length with base excl. base pins/connection 177 mm
Light center length (LCL) 79 mm
Electrode gap cold 3 mm
Max. permitted ambient temp. pinch point 230 °C
Lifespan 2000 h
Base anode (standard designation) SK19/36
Base cathode (standard designation) SK19/36
Product remark OFR = Ozone-free version
Cooling Forced
Burning position s30
Benefits
• Short arc with very high luminance for brighter screen illumination
• Constant color temperature of 6000 K throughout the entire lamp lifetime
• Easy to maintain
• High arc stability
• Instant light on screen thanks to hot restart function
• Wide dimming range
Areas of application
• Classic 35 mm film projection
• Digital film and video projection
• Architectural and effect light (“Light Finger”)
• Sunlight simulation
Features
• Color temperature: approx. 6000 K (Daylight)
• Wattage: 1200…8000 W
• Very good color rendering index: Ra > 96
| Explanation Dimmable | no |
| Explanation Lamp holder, lamp socket | SK19/36/SK19/36 |
| Explanation Wattage - (W) | 450 |
| Explanation Luminous flux - (lm) | 130000 |
| Explanation Luminous efficacy - (lm / W) | 289 |
| Explanation Color temperature - (K) | 6000 |
| Explanation Color rendering - (CRI) | 96 |
| Explanation Energy consumption - (kWh / 1000h) | 450 |
| Explanation Lifetime - (h) | 2000 |
| Explanation Factory packed - (pieces) | 1 |
