HXP 120W 45 C UV

Add to compare

Print PDF

Product tags

Speciality Retrofit Lamp HXP 120W 45 C UV is the top choice for medical and technical applications. With its short arc and elliptic reflector, it efficiently transfers radiation to fiber optics systems. Enjoy an extremely long service life with this lamp, making it a reliable investment. Illuminate your space with high luminous efficacy and efficient focusing of light at approximately 9500 K color temperature. Please note that safety precautions must be taken due to high luminance, UV radiation, and mercury release if the lamp breaks.

More info

Nominal wattage 120 W
Lamp wattage 120 W
Nominal voltage 85 V
Lamp voltage 60…90 V
Lamp current 1.4 A
Type of current AC

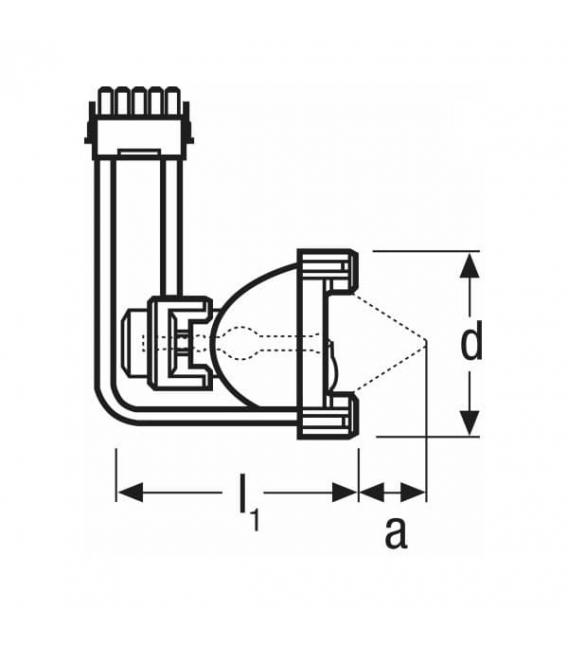

Focal length 45 mm
Diameter 67 mm
Length with base excl. base pins/connection 77 mm
Lifespan 2000 h
Base (standard designation) -
Product remark To be operated with PT-VIP 2 A C/380 O1 DIM 120 VS25
Cooling Forced
Burning position p20

Benefits
• Very high luminous efficacy
• Elliptical reflector for efficient focusing of the light
• Long lamp life

Features
• AC operation with square-wave current
• Color temperature: approx. 9500 K

SAFETY ADVICE
Because of their high luminance, UV radiation and high internal pressure in the hot state HXP lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Mercury is released if the lamp breaks. Special safety precautions must be taken. More information is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Dimmable	no
Wattage - (W)	120
Color temperature - (K)	9500
Energy consumption - (kWh / 1000h)	120
Lifetime - (h)	2000
Factory packed - (pieces)	1

General safety informations
