Master son PIA plus 600W E40 sodium lamps performance

System Description External Ignitor
Cap-Base E40
Bulb T46 [T 46 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 5% failures 12000 h
Life to 10% failures 15000 h
Life to 20% failures 20000 h
Life to 50% failures 30000 h
Color Code 220 [CCT of 2000 K]
Color Rendering Index 25 (max) Ra8
Color Temperature 2000 K
Luminous Flux EM 25 °C, Rated 90000 lm
Luminous Efficacy Lamp EM 148 lm/W
Lumen Maintenance 2000 h 96%
Lumen Maintenance 5000 h 90%
Lumen Maintenance 20000 h 77%
Luminance Average EM cd/cm²
Chromaticity Coordinate X 526 -
Chromaticity Coordinate Y 424 -
Lamp Wattage 600 W
Voltage 230 V
Lamp Voltage 115 V
Lamp Current EM 5.8 A
Ignition Time 10 (max) s
Run-up time 90% 5 (max) min
Ignition Supply Voltage
Dimmable No
Re-ignition Time [sec] 60 (max) s
Ratio scotopic/photopic lumens 0.60 -
Energy Efficiency Label (EEL) A++
Mercury (Hg) Content 24 mg
Energy consumption kWh/1000 h 665 kWh
Cap-Base Temperature 250 (max) °C
Bulb Temperature 450 (max) °C

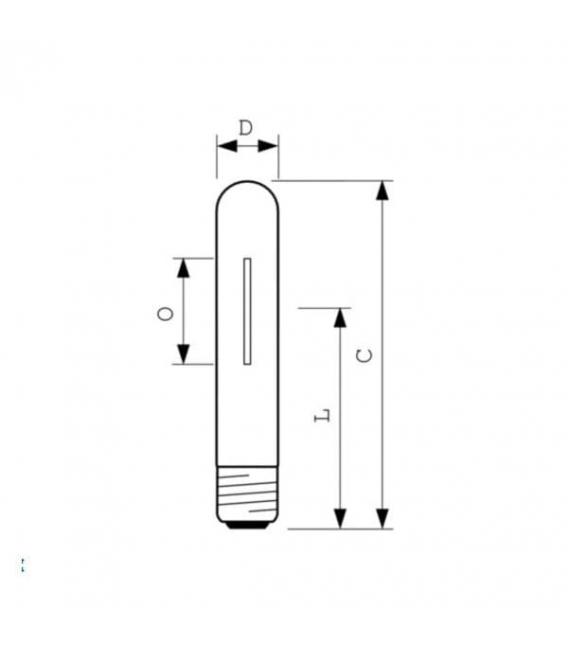

Overall Length C 283 (max) mm
Diameter D 47 (max) mm
Light Center Length L 174.2 mm
Arc Length O 126 mm

Benefits
• Initial investment saving options with Plus concept
• High lumen output, maintained over life
• Minimal maintenance cost

Features
• Clear tubular outer bulb
• Ceramic discharge tube with Unique Philips Integrated Antenna (PIA) concept enabling long and reliable lifetime
• Plus concept with high efficacy translates into high light output and improved lumen maintenance
• Robust construction with few welding points is highly vibration- and shock-resistant, further reducing early failures and extending lamp life
• Dimmable

Applications

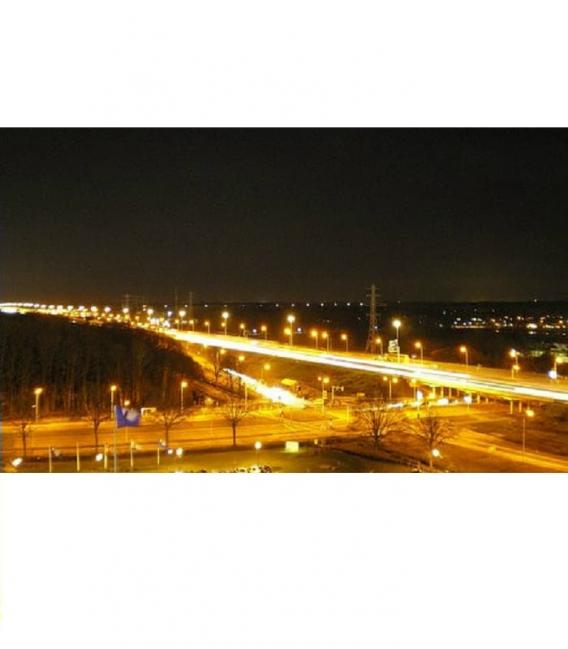

• Road and residential lighting
• Decorative floodlighting, illumination
• Industrial area lighting
• Recreational sports facilities indoor and outdoor
