PL 60W 4P TUV UV 2G11 lamp premium sterilization solution

Cap-Base 2G11
Cap-Base Information 4 Pins
Bulb 2 × T16
Main Application Disinfection
Useful Life 9000 h
Color Code TUV
Lamp Wattage 60 W
Lamp Wattage Technical 60 W
Lamp Voltage 84 V
Lamp Current 0.800 A
UV-C Radiation 19 W

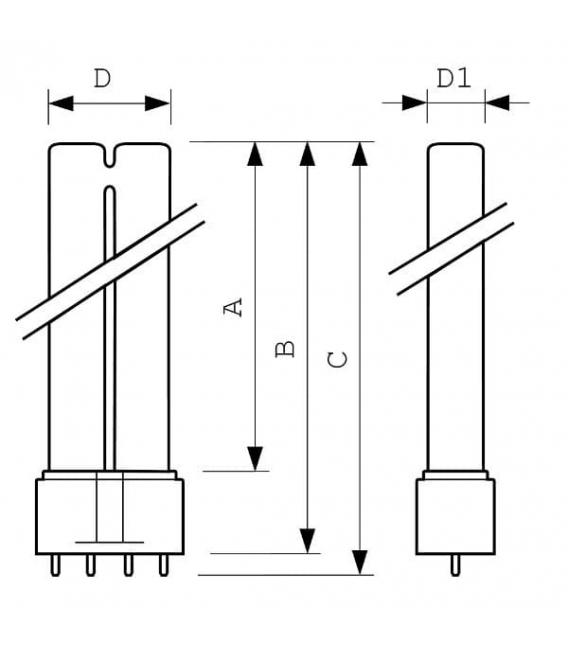

Base Face to Base Face A 390 (max) mm
Insertion Length B 415 (max) mm
Overall Length C 420 (max) mm
Diameter D 38 (max) mm
Diameter D1 18 (max) mm
TUV PL-L lamps are compact UVC germicidal lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Features

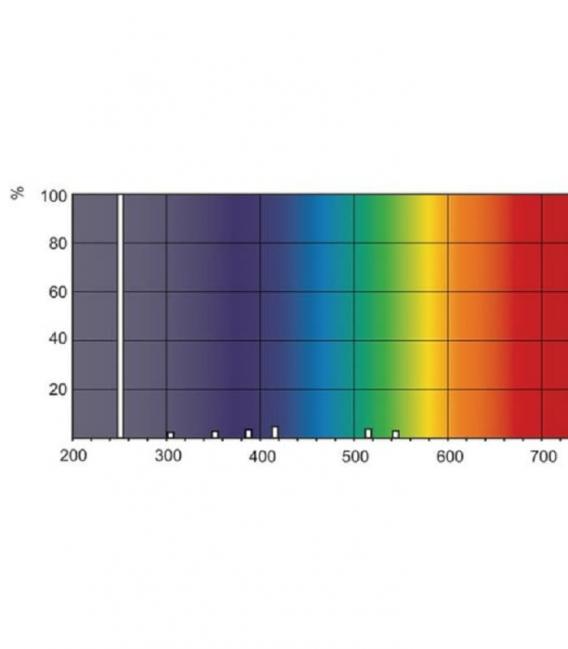

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
• High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
• Warning sign on lamp indicates that the lamp radiates UVC

Applications
• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond and process water units
• In-duct air treatment units
• Stand alone air purifiers
• Air disinfection systems in for example hospitals, universities and laboratories

General safety informations
