PL 9W 52 2P UV medical therapy jaundice lamp for phototherapy

Experience effective jaundice treatment with the Lamp PL-S 9W 52 2P UV-B Medical Therapy, a standout in our Phototherapy lamps category. Unmatched for its therapeutic benefits.

Cap-Base G23
Cap-Base Information 2 Pins
Bulb 2 × T12
Main Application Medical Therapy
Useful Life 2000 h
Life to 50% failures EM 8000 h
Color Code 52
Color Designation Medical
Luminous Flux Lamp EM 130 lm
Luminous Efficacy Lamp EM 15 lm/W
Lumen Maintenance 5000 h 75%
Depreciation 1000 hours 20%
Lamp Wattage 9 W
Lamp Wattage Technical 8.6 W
Lamp Voltage 60 V
Lamp Current 0.17 A

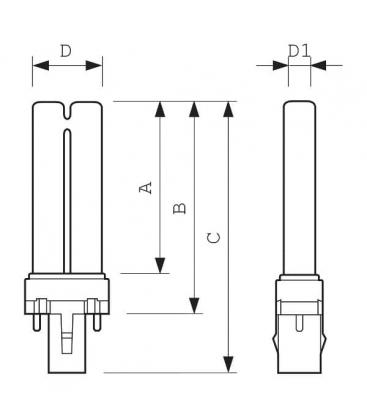

Base Face to Base Face A 129 (max) mm
Insertion Length B 144.5 (max) mm
Overall Length C 167.5 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm

Medical Therapy Jaundice PL-S - the compact way to eliminate the need for blood transfusions.

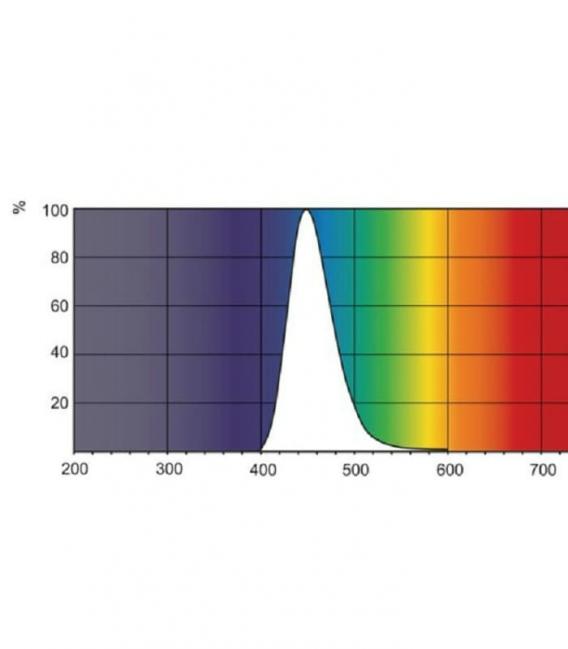

By emitting light almost entirely within the 400…500 nm bandwidth these Medical Therapy Jaundice PL-L lamps have no radiation from the short wave UVB waveband. They are therefore ideal for treating new born babies suffering from hyperbilirubinemia (neonatal jaundice) and Crigler-Najjar Syndrome (CNS). Moreover, the bandwidth of these lamps peak at the most effective treatment wavelength of 450 nm. This highly efficacious phototherapy treatment has eliminated the need for blood transfusions in almost all jaundiced infants. In addition, with the compact format of this PL-L lamp equipment manufacturers have more design freedom in developing their solutions. By emitting a full spectrum of a high color temperature, the PL-L /953 lamps are ideal for treating SAD.

Features
• PL-L 18 W/52: Emission peak at 450 nm
• PL-L 36 W/953: Natural daylight spectrum and high light output for optimal effect

Applications

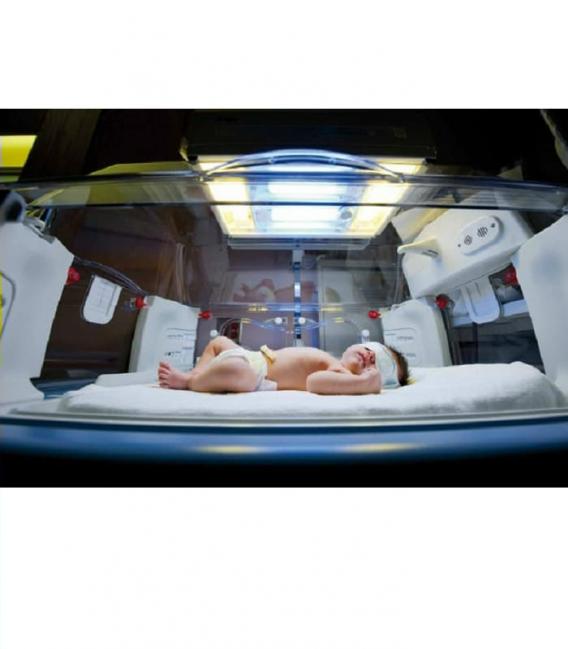

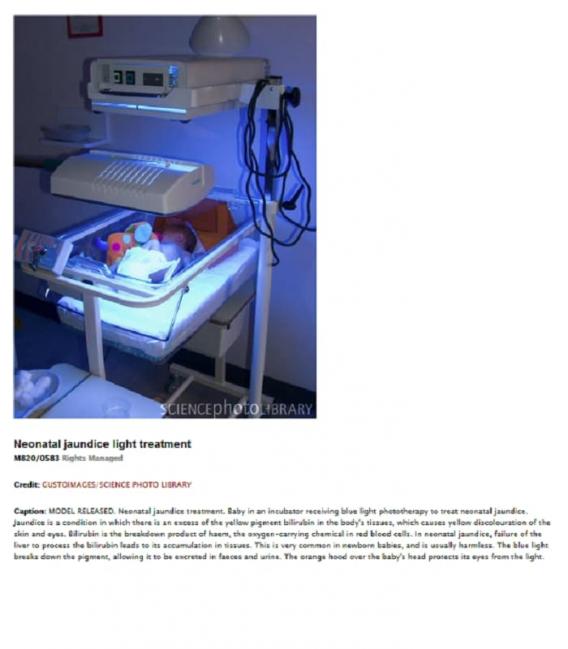

• PL-L 18 W/52: Medical treatment of jaundice in new-born babies (hyperbilirubinaemia), Crigler - Najjar (CN) syndrome
• PL-L 36 W/953: SAD syndrome
