PL-L 36W 09 4P UV-A (PUVA)

Cap-Base 2G11
Cap-Base Information 4 Pins
Bulb 2 × T16
Main Application Phototherapy
Useful Life 1000 h
Life to 50% failures EM 1000 h
Color Code 09
Color Designation Ultra Violet A
Chromaticity Coordinate X 228 -
Chromaticity Coordinate Y 230 -
Depreciation 500 hours 30%
Depreciation 1000 hours 40%
Lamp Wattage 36 W
Lamp Wattage Technical 36 W
Lamp Voltage 106 V
Lamp Current 0.435 A
Mercury (Hg) Content 4.4 (nom), 4.9 (max) mg
UV-A Radiation 100 h (IEC) 9 W
UV-A Radiation 0 h (IEC) 10.5 W

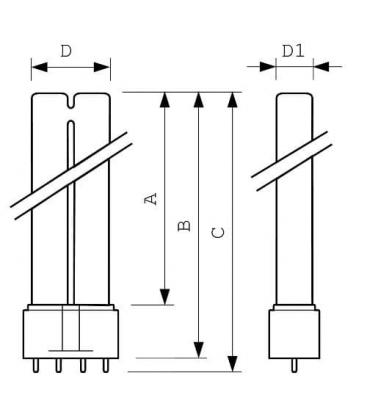

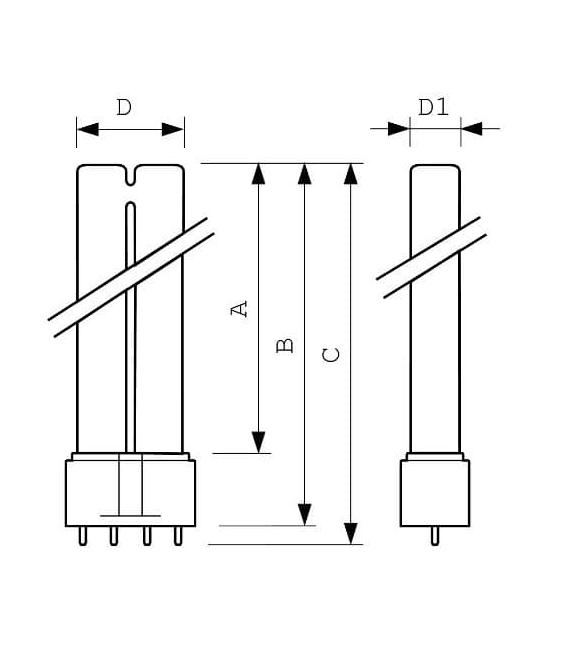

Base Face to Base Face A 384.2 (max) mm
Insertion Length B 410 (max) mm
Overall Length C 416.6 (max) mm
Diameter D 39 (max) mm
Diameter D1 18 (max) mm
Nowadays the preferred radiotherapy treatment of skin diseases like psoriasis is through the use of the ‘B’ bandwidth of the UV spectrum, since this requires no photo-sensitizing agent. But some patients do not respond to UVB treatment, hence a UV lamp with an ‘A’ bandwidth of the UV spectrum is used, and here Philips offers a choice of either a TL or the more compact PLS/PLL lamps. Both are ideal for when the ‘B’ bandwidth of the UV spectrum is ineffective. These (PUVA) lamps have a wavelength of between 315 to 380 nm and are not only used for the treatment of psoriasis but are also commonly used for more than 20 other diseases.

Features
• Emission peak at 350 nm

Applications
• Psoriasis, Parapsoriasis, Vitiligo, Atopic Dermatitis, Mycosis fungoides

General safety informations
