Mini T5 G5 UV TUV 11W 4P efficiency lamp sterilization

Cap-Base G10q
Cap-Base Information 4 Pins Single Ended
Bulb T16
Main Application Disinfection
Useful Life 9000 h
Lamp Wattage 11 W
Lamp Wattage Technical 11 W
Lamp Voltage 34 V
Lamp Current 0.330 A
UV-C Radiation 2.6 W

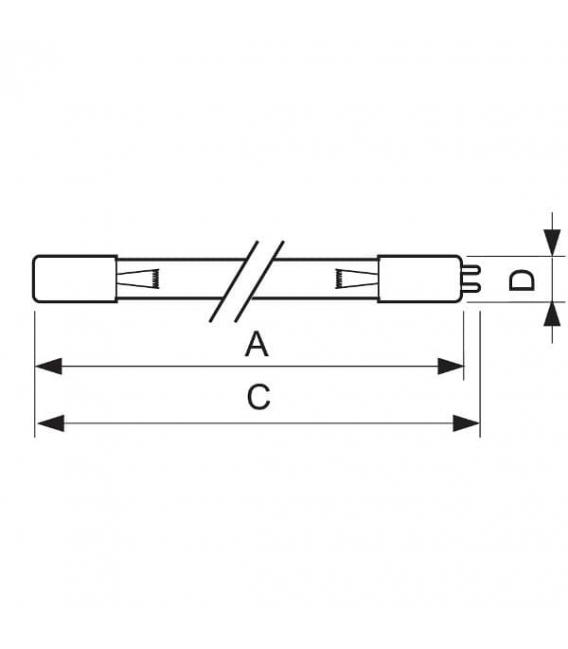

Reference Length A 244.1 (max) mm
Overall Length C 244.9 (min), 248.4 (nom), 251.9 (max) mm
Diameter D 19 (max) mm

Benefits
• Small diameter lamps for residential applications
• Security of effective disinfection over the useful lifetime of the lamp
• High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
• Good environmental choice because of lowest amount of mercury

Features

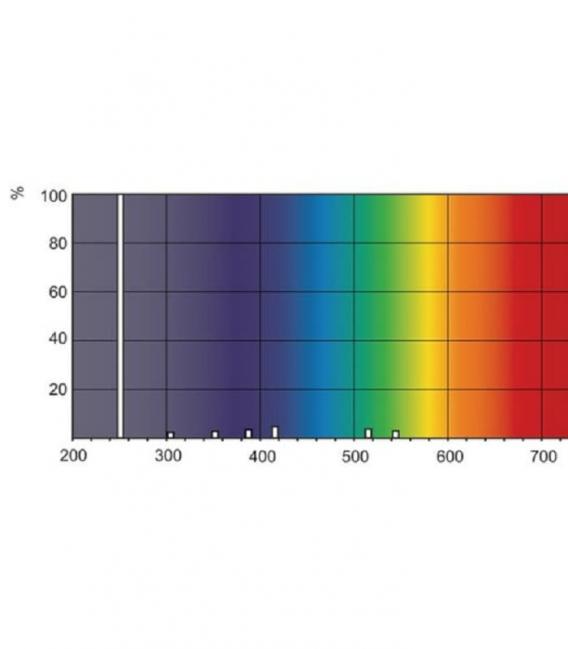

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• Warning sign on lamp indicates that the lamp radiates UVC

Applications
• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond water units
• In-duct air treatment units
• Stand alone air purifiers
