7787 EVD 400W 36V G6 35 light bulbs medical surgical use and

Philips 7787 EVD 400W 36V G6 35 light bulbs medical surgical use and Bulb. Experience superior illumination with the Light Bulb 7787 EVD 400W 36V G6.35, a top choice for medical, surgical and microscopy lamps. Enhance precision today

Cap-Base G6.35
Bulb Material Quartz-UV Open
Filament Shape Flat
Operating Position s90
Main Application Projection
Life to 50% failures 100 h
Color Rendering Index 100 Ra8
Color Temperature Technical 3400 K
Luminous Flux Lamp 14500 lm
Lamp Wattage 400 W
Voltage 36 V
Pinch Temperature 400 (max) °C
Bulb Temperature 900 (max) °C

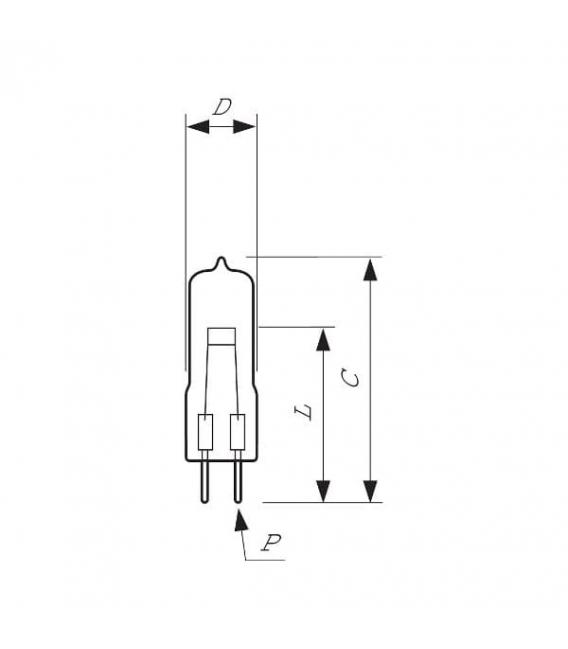

Diameter D 18 (max) mm
Light Center Length L 35.75 (min), 36 (nom), 36.25 (max) mm
Pin Diameter P 0.95 (min), 1 (nom), 1.05 (max) mm
Filament Dimensions (W × H) [mm] 9.4 × 4.7
Halogen non-reflector lamps offer high-quality light and are easy to install, replace and operate. All halogen non-reflector lamps incorporate a distortion-free quartz bulb and a precise positioning of the mounted filament. These ensure optimal beam performance and consistent, high light output. A wide range of wattages is available for a broad variety of applications, including projection systems. In addition you get all the proven advantages of halogen technology such as a full spectrum and a color rendering index (CRI) of 100 - the same as natural light and the best that it can be. Halogen lamps also create a comfortable warm white light, and they maintain their lumen output, with almost no reduction, throughout their lifetime.

Benefits
• High-quality light and easy to use
• Optimal beam performance
• 100% Color Rendering Index (CRI)
• Constant light output throughout lifetime

Features
• Distortion-free, quartz bulb and precisely defined filament position
• Lamp replacement without adjustment
• XHP version with xenon gas for maximum light output
• Flat filament available

Applications
• Studio, film, theatre and disco lighting
• Slide, overhead, profile and 8/16 mm film projectors
• Microscopes
• Optical equipment
• Slide and film viewers
• Surgery lamps
• Microfilm readers
• Dental lamps
• Spectrography

General safety informations
